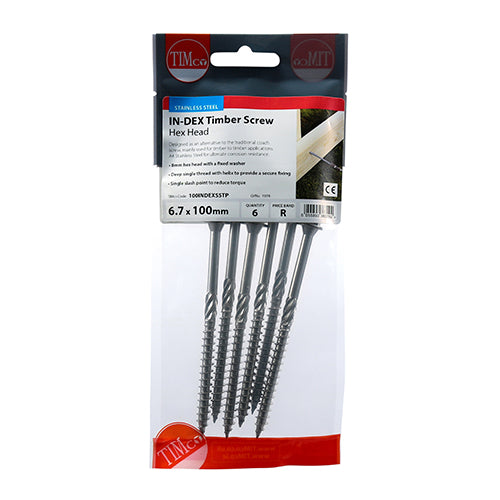

Hex Head Timber Screw - A4 SS - 6.7 x 100 (TIMpac 6)
TIMCO Timber Screws Hex Flange Head A4 Stainless Steel - 6.7 x 100
Designed as an alternative to the traditional coach screw mainly used for timber to timber applications. Manufactured from A4 Stainless Steel for ultimate corrosion resistance making it ideal for external applications. Stainless steel must be used where there is corrosive environment and/or where the base material has inherent corrosive characteristics e.g. Green Oak.
8mm hex head countersunk with a fixed washer
Stainless Steel offers superior corrosion resistance, perfect for highly corrosive environments
Helix shank for removing debris and to improve clamping
50 ° deep single thread to provide a secure fixing with high pull-out resistance
Single slash point to reduce torque and the risk of timber splitting at low edge distance
25 ° sharp point and single lead for a fast start and improved thread acceptance
| Product Code | 100INDEXSSTP |
| Pack Quantity | 6 |
| Pack Type | TIMpac |
| SKU Barcode | 5055893383292 |
| Description | Designed as an alternative to the traditional coach screw mainly used for timber to timber applications. Manufactured from A4 Stainless Steel for ultimate corrosion resistance making it ideal for external applications. Stainless steel must be used where there is corrosive environment and/or where the base material has inherent corrosive characteristics e.g. Green Oak. |
| Pack Quantity Unit | Pieces |
| Material | Austenitic Stainless Steel (A4-316) |
| Colour | Silver |
| Corrosion Rating | 5 - Industrial & coastal areas with an aggressive salt atmosphere |
| Shank Type | Helix |
| Size mm | 6.7 x 100 |
| Head Type | Hex |
| Thread Type | 50 ° Single Deep |
| Thread Length mm | 52 |
| Point Type | 25 ° Sharp with Single Slash |
| Length mm | 100 |
| CE Standard Web | BS EN 14592:2008 |
| Thread Dia. mm | 6.7 |
| Carton Qty pcs | 60 |
| Carton Qty Packs | 10 |
| Substrates | Hardwood, Softwood, Corrosive Wood (e.g. Oak, Cedar) |
| Socket Size mm | 8 |
| Inner Thread Dia. mm | 4.4 |
| Head Dia. mm | 16.08 |
| Fixed Washer Dia. mm | 12 |
| Pack Dimensions L x W x H mm | 15 x 90 x 198 |
| Pack Weight kg | 0.11 |
| Recess Type | External Hex |
| Thread Coverage | Partially Threaded |
