A traditional heavy duty woodscrew mainly used for timber to timber applications, attaching ironmongery to timber or into masonry with the use of a nylon plug. Pilot drill holes may be required into certain hardwoods. NOTE: Thread length is 2/3 of the overall length screw. E.G. 100mm = 60mm thread length (approx.).
Coach Screw DIN 571 - BZP

Coach Screw DIN 571 - BZP - 10.0 x 160 (Box 25)

SKU: 10160CSC
£8.92 inc. VAT
£10.74 Sale £8.92 inc. VAT
Description

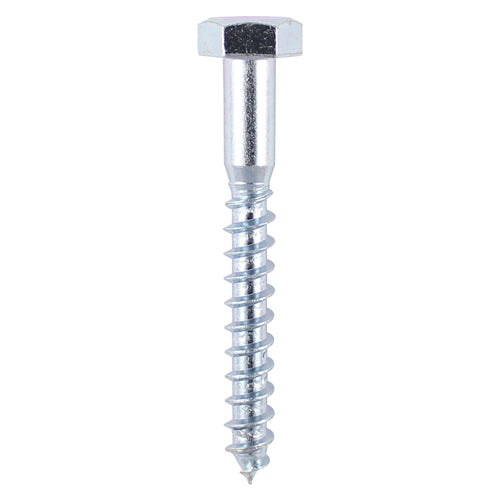

TIMCO Coach Screws Hex Head Silver - 10.0 x 160

A traditional heavy duty woodscrew mainly used for timber to timber applications, attaching ironmongery to timber or into masonry with the use of a nylon plug. Pilot drill holes may be required into certain hardwoods. NOTE: Thread length is 2/3 of the overall length screw. E.G. 100mm = 60mm thread length (approx.).

Pack Type Box
Description A traditional heavy duty woodscrew mainly used for timber to timber applications, attaching ironmongery to timber or into masonry with the use of a nylon plug. Pilot drill holes may be required into certain hardwoods. NOTE: Thread length is 2/3 of the overall length screw. E.G. 100mm = 60mm thread length (approx.).
Product Code 10160CSC
Pack Quantity 25
Thread Dia. mm 10
SKU Barcode 5055893347096
Pack Quantity Unit Pieces
Finish Zinc
Substrates Hardwood, Softwood, Brick (with plug)
Material Carbon Steel
Corrosion Rating 1 - Clean, dry & low humidity environments
Point Type Sharp
Size mm 10.0 x 160
Head Type Hex
Length mm 160
Thread Length mm 96
Thread Type 60 ° Self-Tapping
CE Standard Web BS EN 14592:2008
DIN Standard DIN 571
Carton Qty pcs 300
Carton Qty Packs 12
Socket Size mm 17
Head Dia. mm 19.3
Inner Thread Dia. mm 7
Pack Weight kg 1.08
Pack Dimensions L x W x H mm 230 x 90 x 65
Recess Type External Hex
Thread Coverage Partially Threaded
