Designed as an alternative to the traditional coach screw. This heavy duty screw dramatically decreases installation time as it doesn’t require a pilot hole into most wood types. This screw is ideal for external applications or where extra strength is required. Coated with a patented multi-layer corrosion resistant plating to withstand 1,000 hours salt spray test.
Timber Frame Screw HEX Silver

Timber Frame Screw HEX Silver - 10 x 80 (Bag 10)

SKU: 1080INI
£3.35 inc. VAT
£4.15 Sale £3.35 inc. VAT
Description

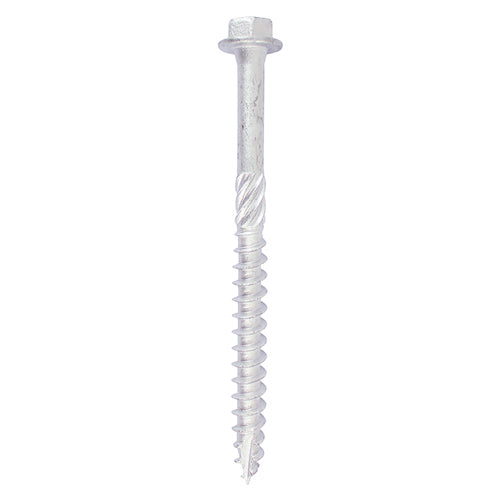

TIMCO Heavy Duty Timber Screws Hex Flange Head Exterior Silver - 10 x 80

Designed as an alternative to the traditional coach screw. This heavy duty screw dramatically decreases installation time as it doesn’t require a pilot hole into most wood types. This screw is ideal for external applications or where extra strength is required. Coated with a patented multi-layer corrosion resistant plating to withstand 1,000 hours salt spray test.

Hex head countersunk with a fixed washer

Patented silver corrosion resistant plating

50 ° deep single thread to provide a secure fixing with high pull-out resistance

Single slash point to reduce torque and the risk of timber splitting at low edge distance

Helix removes debris and helps improve clamping

Pack Quantity 10
Pack Type Bag
SKU Barcode 5055893387399
Product Code 1080INI
Description Designed as an alternative to the traditional coach screw. This heavy duty screw dramatically decreases installation time as it doesn’t require a pilot hole into most wood types. This screw is ideal for external applications or where extra strength is required. Coated with a patented multi-layer corrosion resistant plating to withstand 1,000 hours salt spray test.
Pack Quantity Unit Pieces
Material Carbon Steel
Corrosion Rating 3 - Urban & industrial areas with a low salt atmosphere
Included Items Socket Driver (Qty 1)
Shank Type Helix
Colour Silver
Finish Exterior (Silver Organic)
Size mm 10.0 x 80
Head Type Hex Flange
Thread Type 50 ° Single Deep
Point Type 25 ° Sharp with Single Slash
Length mm 80
Thread Length mm 40
CE Standard Web BS EN 14592:2008
Thread Dia. mm 10
Carton Qty pcs 50
Carton Qty Packs 5
Socket Size mm 13
Inner Thread Dia. mm 6.56
Fixed Washer Dia. mm 18.11
Pack Dimensions L x W x H mm 20 x 130 x 200
Pack Weight kg 0.39
Recess Type External Hex
Thread Coverage Partially Threaded
