Generally used for attaching steel hardware to steel reinforced PVCu sections. The flat underside of the screws head allows it to clamp the materials together firmly.
Pan Head S/Drill Screw - BZP

Pan Head S/Drill Screw - BZP - 4.2 x 25 (Box 1000)

SKU: 133Z
£17.69 inc. VAT
£21.40 Sale £17.69 inc. VAT
Description

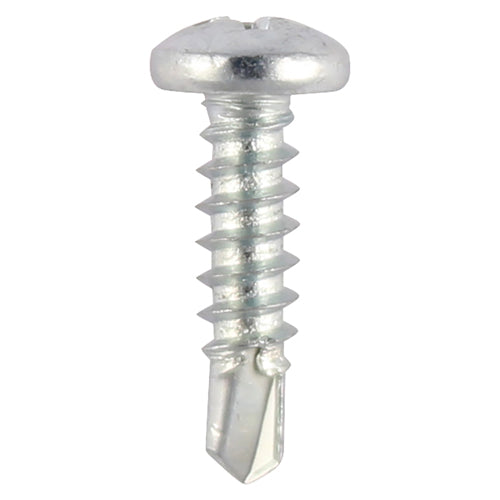

TIMCO Window Fabrication Screws Pan PH Self-Tapping Thread Self-Drilling Point Zinc - 4.2 x 25

Generally used for attaching steel hardware to steel reinforced PVCu sections. The flat underside of the screws head allows it to clamp the materials together firmly.

Pack Type Box
Description Generally used for attaching steel hardware to steel reinforced PVCu sections. The flat underside of the screws head allows it to clamp the materials together firmly.
Pack Quantity 1000
Product Code 133Z
SKU Barcode 5055017528387
Pack Quantity Unit Pieces
Recess Type Phillips
Finish Zinc
Corrosion Rating 2 - Occasionally damp/wet, rural and sheltered areas
Material Carbon Steel
Size mm 4.2 x 25
Head Type Pan
Driver Bit Size PH2
Thread Type Self-Tapping
Length mm 25
Point Type Self-Drilling
Substrates Steel
Approval All tested to BS EN ISO 9227:2006. UKAS Accredited. In accordance with BS 7412 and both the BPF and GGF guidelines.
Thread Dia. mm 4.2
Carton Qty pcs 6000
Carton Qty Packs 6
Max Drilling Thickness mm 3
Pack Dimensions L x W x H mm 180 x 90 x 90
Pack Weight kg 2.239
Thread Coverage Fully Threaded
