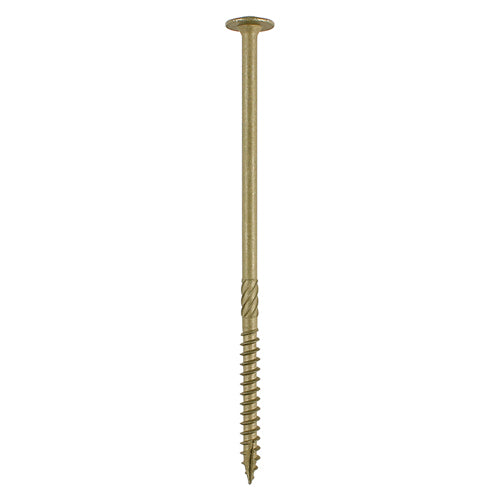

Wafer Head Timber Screw- Green - 6.7 x 150 (TIMbag 20)
TIMCO Wafer Head Exterior Green Timber Screws - 6.7 x 150
Designed as an alternative to the traditional coach screw mainly used for timber to timber applications. Wafer head for improved clamping and a low profile finish. Coated with a patented multi-layer corrosion resistant plating to withstand 1,000 hours salt spray test, this screw is ideal for external applications.
Wafer head countersunk and TX30 recess
Long lasting withstands up to 1,000 hours salt spray resistance in accordance to BS EN 9227:2012
Helix shank for removing debris and to improve clamping
50 ° deep single thread to provide a secure fixing with high pull-out resistance
Single slash point to reduce torque and the risk of timber splitting at low edge distance
25 ° sharp point and single lead for a fast start and improved thread acceptance
| Pack Quantity | 20 |
| Pack Type | TIMbag |
| Description | Designed as an alternative to the traditional coach screw mainly used for timber to timber applications. Wafer head for improved clamping and a low profile finish. Coated with a patented multi-layer corrosion resistant plating to withstand 1,000 hours salt spray test, this screw is ideal for external applications. |
| Product Code | 150INDEXWB |
| SKU Barcode | 5055331824998 |
| Pack Quantity Unit | Pieces |
| Colour | Olive Green |
| Recess Type | TX Drive |
| Finish | Exterior (Green Organic) |
| Material | Carbon Steel |
| Shank Type | Helix |
| Corrosion Rating | 3 - Urban & industrial areas with a low salt atmosphere |
| Size mm | 6.7 x 150 |
| Driver Bit Size | TX30 |
| Thread Type | 50 ° Single Deep |
| Point Type | Single Slash |
| Length mm | 150 |
| Thread Length mm | 52 |
| Head Type | Wafer |
| CE Standard Web | BS EN 14592:2008 |
| Thread Dia. mm | 6.7 |
| Lubrication | Wax |
| Carton Qty pcs | 100 |
| Carton Qty Packs | 5 |
| Substrates | Hardwood, Softwood |
| Head Dia. mm | 16.08 |
| Included Items | TX30 S2 Bit (Qty 1) |
| Inner Thread Dia. mm | 4.4 |
| Fixed Washer Dia. mm | 12 |
| Pack Weight kg | 0.53 |
| Pack Dimensions L x W x H mm | 265 x 152 x 50 |
| Thread Coverage | Partially Threaded |
