Perform Ball Race Hinge PC - 76 x 50 (Box 2)
Regular price
£6.85
inc. VAT
Regular price
£8.27
Sale
Sale price
£6.85
inc. VAT

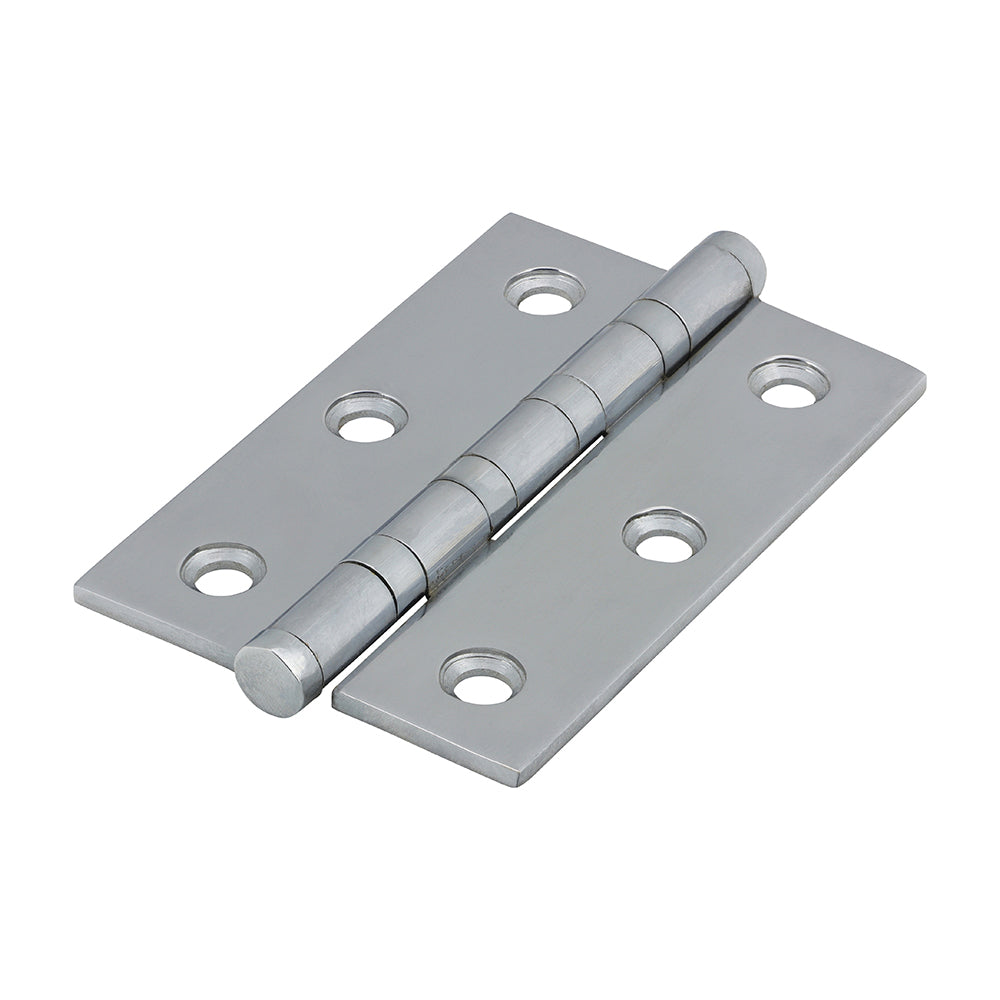

TIMCO Performance Ball Race Button Tip Brass Hinges Polished Chrome - 76 x 50
Performance ball raced hinges are made to the highest specification from solid drawn brass and brass pins to guarantee no rust and a long lasting finish. They are ideal for heavy high quality doors in domestic applications. Featuring 4 ball bearing raced knuckles to prevent knuckle wear and provide a lifetime of silent, smooth door operation. Fixings included.
| Description | Performance ball raced hinges are made to the highest specification from solid drawn brass and brass pins to guarantee no rust and a long lasting finish. They are ideal for heavy high quality doors in domestic applications. Featuring 4 ball bearing raced knuckles to prevent knuckle wear and provide a lifetime of silent, smooth door operation. Fixings included. |
| Length mm | 76 |
| Corner Type | Square |
| Length inch | 3 |
| Thickness mm | 2.5 |
| Pack Quantity Unit | Pieces |
| Pack Quantity | 2 |
| Size L x W mm | 76 x 50 |
| Max Door Weight kg | 40 |
| Material | Solid Brass |
| Corrosion Rating | 4 - Urban & industrial areas with a moderate salt atmosphere |
| Screw Size mm | 4.0 x 25 |
| Product Code | 234011 |
| Bearing Type | Brass Ball Bearing |
| Pack Type | Box |
| Screw Size imp. | 8 x 1 |
| Hole Dia. mm | 5.2 |
| Rec Screw Dia. mm | 4 |
| Pin Material | Brass |
| Knuckle Dia. mm | 8 |
| Finish | Polished Chrome |
| SKU Barcode | 5056110823492 |
| Rec Screw Gauge imp. | 8 |
| Open Width mm | 50 |
| No. of CSK Screws | 12 |
| Knuckle Type | Ball Bearing |
| Screws Required Per Pair | 12 |
| Pack Dimensions L x W x H mm | 118 x 44 x 22 |
| Carton Qty Packs | 80 |
| Pack Weight kg | 0.22 |
| Carton Qty pcs | 80 pairs |
