Perform Ball Race Hinge BRZ - 102 x 76 (Box 2)
Regular price
£15.10
inc. VAT
Regular price
£18.15
Sale
Sale price
£15.10
inc. VAT

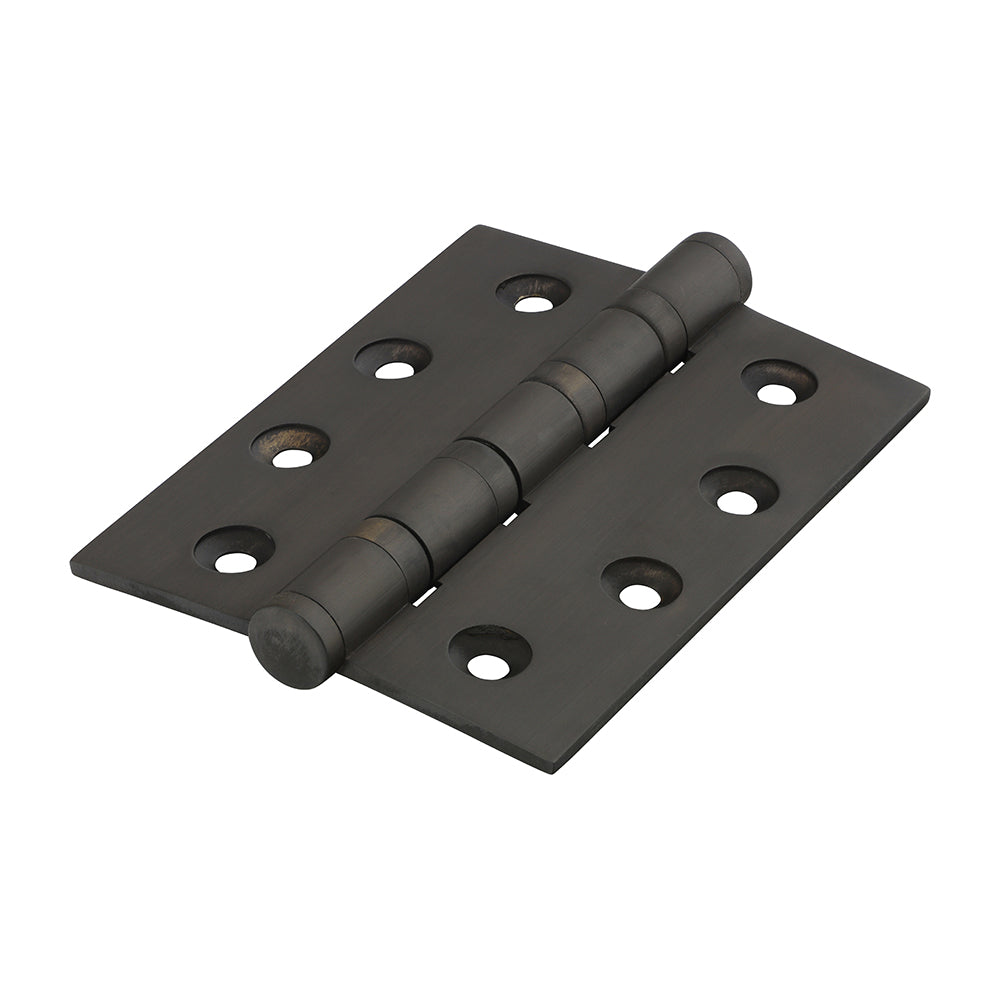

TIMCO Performance Ball Race Button Tip Brass Hinges Bronze - 102 x 76
Performance ball raced hinges are made to the highest specification from solid drawn brass and brass pins to guarantee no rust and a long lasting finish. They are ideal for heavy high quality doors in domestic applications. Featuring 4 ball bearing raced knuckles to prevent knuckle wear and provide a lifetime of silent, smooth door operation. Fixings included.
| Description | Performance ball raced hinges are made to the highest specification from solid drawn brass and brass pins to guarantee no rust and a long lasting finish. They are ideal for heavy high quality doors in domestic applications. Featuring 4 ball bearing raced knuckles to prevent knuckle wear and provide a lifetime of silent, smooth door operation. Fixings included. |
| Corner Type | Square |
| Length inch | 4 |
| Thickness mm | 3 |
| Pack Quantity | 2 |
| Pin Material | Brass |
| Max Door Weight kg | 80 |
| Material | Solid Brass |
| Hole Dia. mm | 5.5 |
| Screw Size mm | 5.0 x 30 |
| Product Code | 234759 |
| Size L x W mm | 102 x 76 |
| Knuckle Dia. mm | 12.8 |
| Length mm | 102 |
| Finish | Bronze |
| SKU Barcode | 5056110823485 |
| Rec Screw Gauge imp. | 10 |
| Open Width mm | 76 |
| Corrosion Rating | 4 - Urban & industrial areas with a moderate salt atmosphere |
| Bearing Type | Brass Ball Bearing |
| Pack Type | Box |
| Screw Size imp. | 10 x 1 |
| Pack Quantity Unit | Pieces |
| Rec Screw Dia. mm | 5 |
| No. of CSK Screws | 16 |
| Knuckle Type | Ball Bearing |
| Screws Required Per Pair | 16 |
| Pack Weight kg | 0.58 |
| Carton Qty Packs | 40 |
| Carton Qty pcs | 40 pairs |
| Pack Dimensions L x W x H mm | 156 x 68 x 28 |
