Designed for use on standard internal residential doors, including heavy 30 & 60 minute fire doors weighing up to 80kg. Smooth ball bearing action and tested to 200,000 cycles make these hinges ideal for doors with heavy domestic traffic.
11 Fire Door Hinge E/Brass

11 Fire Door Hinge E/Brass - 102 x 76 x 2.6 (Box 2)

SKU: 334753
£5.20 inc. VAT
£6.27 Sale £5.20 inc. VAT
Description

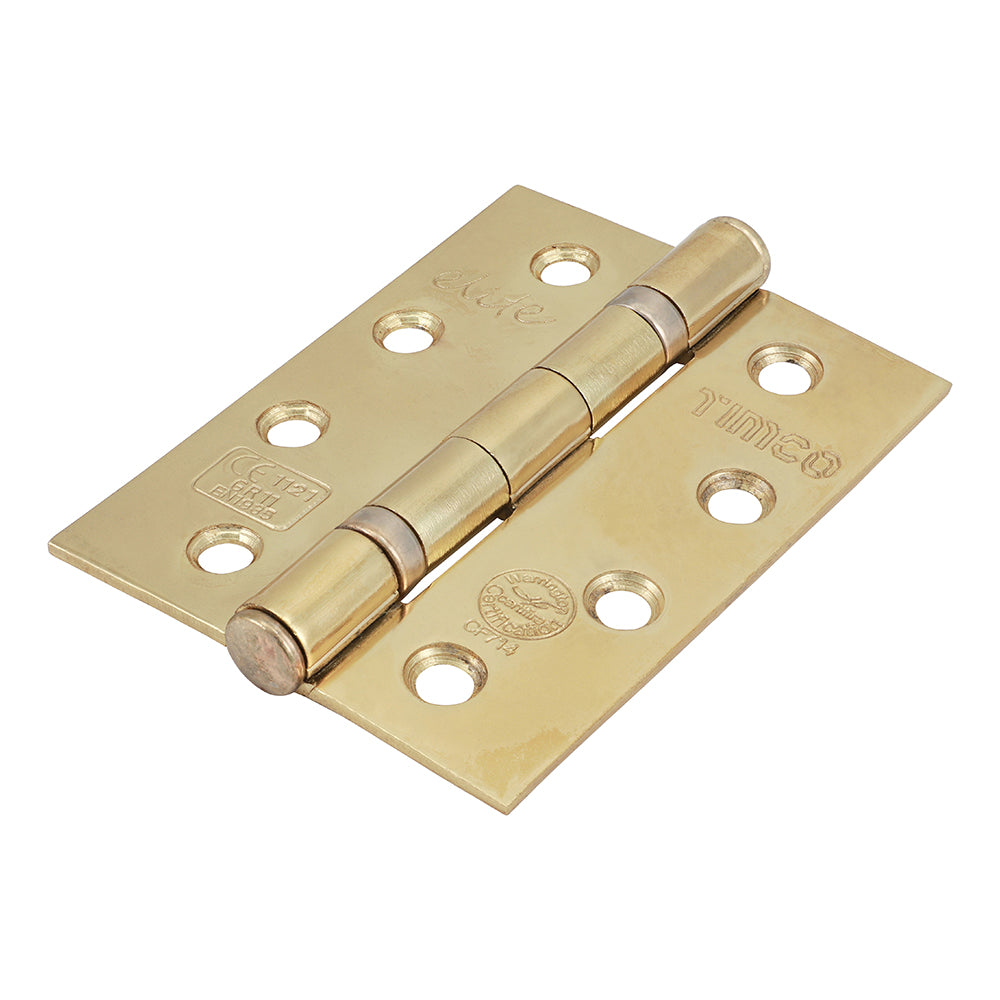

TIMCO Ball Bearing Hinges Grade 11 Steel Electro Brass - 102 x 76 x 2.7

Designed for use on standard internal residential doors, including heavy 30 & 60 minute fire doors weighing up to 80kg. Smooth ball bearing action and tested to 200,000 cycles make these hinges ideal for doors with heavy domestic traffic.

Smooth ball bearing action

Suitable for 30 & 60 minute fire doors

Ideal for heavy doors up to 80kg

For doors with heavy traffic - tested to 200,000 cycles"

Product Code 334753
Description Designed for use on standard internal residential doors, including heavy 30 & 60 minute fire doors weighing up to 80kg. Smooth ball bearing action and tested to 200,000 cycles make these hinges ideal for doors with heavy domestic traffic.
Pack Quantity 2
Screw Size imp. 10 x 1
Screw Size mm 5.0 x 30
Size L x W mm 102 x 76
Thickness mm 2.6
CE Standard Web BS EN 1935:2002
Pack Quantity Unit Pieces
Hole Dia. mm 7.2
Corrosion Rating 2 - Occasionally damp/wet, rural and sheltered areas
Length inch 4
Open Width mm 76
Corner Type Square
Knuckle Type Ball Bearing
Carton Qty pcs 40 pairs
Max Door Weight kg 80
No. of CSK Screws 16
Rec Screw Dia. mm 5
BS EN Classification 374113011
Fire Rating 30 & 60 Minutes
Pack Type Box
SKU Barcode 5056110836591
Knuckle Dia. mm 12.5
Length mm 102
Grade 11
Material Carbon Steel
Rec Screw Gauge imp. 10
Carton Qty Packs 40
Screws Required Per Pair 16
Certifire Number CF714
Pack Dimensions L x W x H mm 160 x 55 x 25
Pack Weight kg 0.48
Finish Electro Brass
