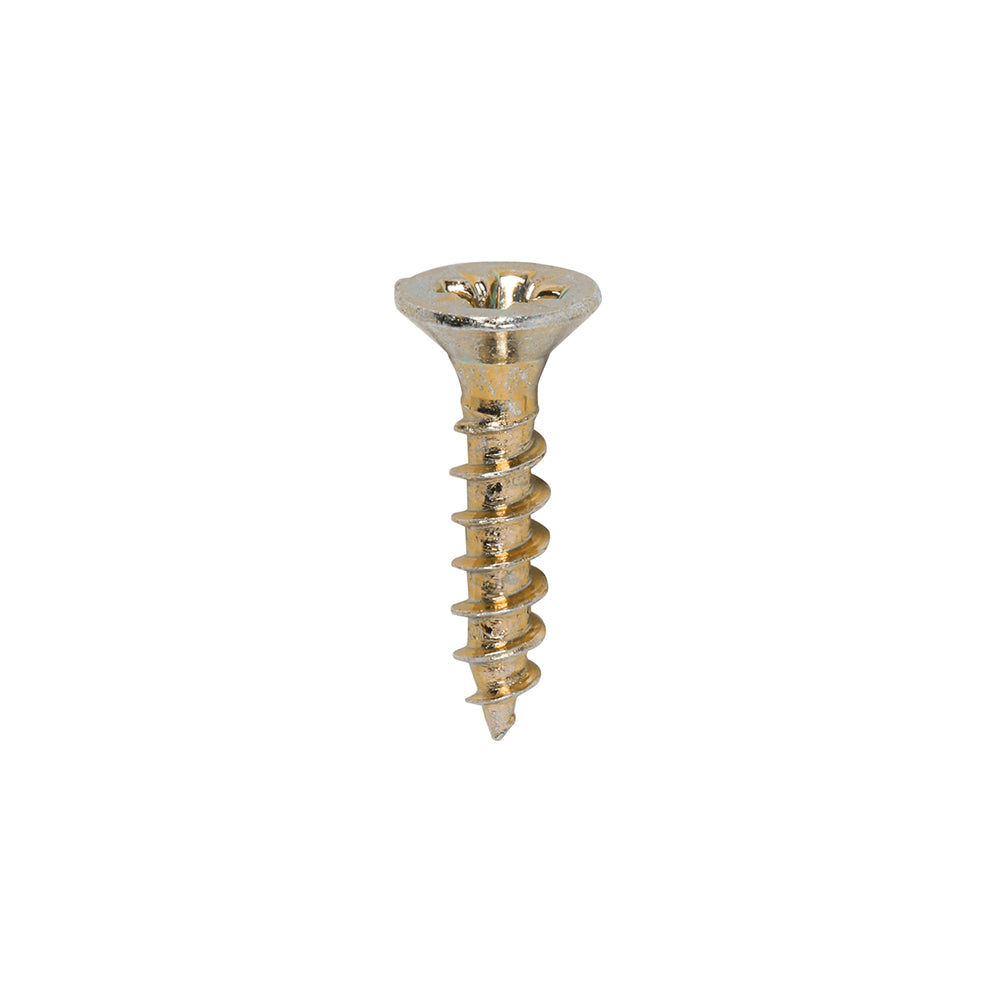

TIMCO Classic Multi-Purpose Countersunk Gold Woodscrews - 3.5 x 16
Specifically designed as a multi-purpose product, the 25 ° sharp point, special thread design, lubrication and corrosion resistant plating ensures the screw will consistently perform efficiently in hardwood, chipboard, MDF, plastic and thin sheet metal, whilst offering exceptional holding power. NOTE: Sharp point only.
Double countersunk reduces the likelihood of head shear and assists completion of countersinking
Patented lubrication, designed to enhance screw insertion time and provides greater resistance to corrosion
40 ° deep single thread to provide a secure fixing with high pull-out resistance
Surface hardened up to 750 HV to prevent torque shearing under load and a core hardness of up to 450 HV for improved ductility
All sizes up to and including 75mm are fully threaded and lengths 80mm and above all have 70mm thread length
Pack Quantity | 200 |
Description | Specifically designed as a multi-purpose product, the 25 ° sharp point, special thread design, lubrication and corrosion resistant plating ensures the screw will consistently perform efficiently in hardwood, chipboard, MDF, plastic and thin sheet metal, whilst offering exceptional holding power. NOTE: Sharp point only. |
Product Code | 35016CLAF |
Pack Type | Box |
SKU Barcode | 5055017507078 |
Pack Quantity Unit | Pieces |
Material | Carbon Steel |
Recess Type | Pozi |
Finish | Zinc & Yellow |
Gauge | 6 |
Substrates | Hardwood, Softwood, Chipboard, MDF, Plastic, Thin Sheet Metal |
Lubrication | Gleitmo |
Corrosion Rating | 2 - Occasionally damp/wet, rural and sheltered areas |
Size mm | 3.5 x 16 |
Head Type | Double Countersunk |
Driver Bit Size | PZ2 |
Thread Type | Single Coarse 40 ° |
Length mm | 16 |
Thread Length mm | 11 |
Length inch | |
Point Type | 25 ° Sharp |
Size imp. | 6 x |
CE Standard Web | BS EN 14592:2008 |
Thread Dia. mm | 3.5 |
Carton Qty Packs | 140 |
Carton Qty pcs | 28000 |
Inner Thread Dia. mm | 2.25 |
Head Dia. mm | 6.68 |
Pack Dimensions L x W x H mm | 55 x 40 x 36 |
Pack Weight kg | 0.16 |
Thread Coverage | Fully Threaded |
