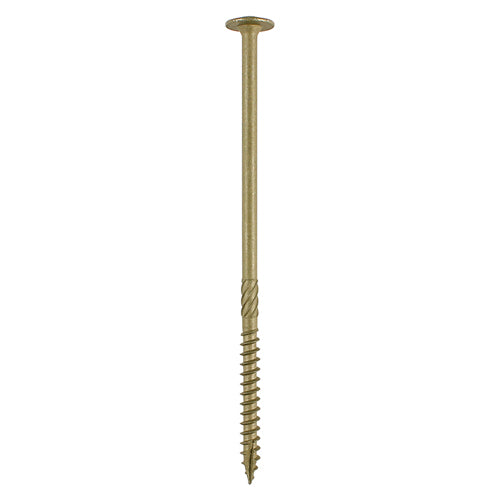

Timber Frame Screw WAFER Green - 8.0 x 350 (Box 25)
TIMCO Wafer Head Exterior Green Timber Screws - 8.0 x 350
Designed as an alternative to the traditional coach screw mainly used for timber to timber applications. Wafer head for improved clamping and a low profile finish. Coated with a patented multi-layer corrosion resistant plating to withstand 1,000 hours salt spray test, this screw is ideal for external applications.
Wafer head countersunk and TX40 recess
Long lasting plating withstands up to 1,000 hours salt spray resistance in accordance to BS EN 9227:2012
Patented lubrication, designed to enhance screw insertion time and provides greater resistance to corrosion
Helix shank for removing debris and to improve clamping
50 ° deep single thread to provide a secure fixing with high pull-out resistance
Single slash point to reduce torque and the risk of timber splitting at low edge distance
| Product Code | 350INW |
| Pack Quantity | 25 |
| Description | Designed as an alternative to the traditional coach screw mainly used for timber to timber applications. Wafer head for improved clamping and a low profile finish. Coated with a patented multi-layer corrosion resistant plating to withstand 1,000 hours salt spray test, this screw is ideal for external applications. |
| Pack Type | Box |
| SKU Barcode | 5055331861924 |
| Driver Bit Type | TX Drive |
| Pack Quantity Unit | Pieces |
| Recess Type | TX Drive |
| Colour | Olive Green |
| Finish | Exterior (Green Organic) |
| Material | Carbon Steel |
| Shank Type | Helix |
| Corrosion Rating | 3 - Urban & industrial areas with a low salt atmosphere |
| Length mm | 350 |
| Thread Length mm | 70 |
| Head Type | Wafer |
| Thread Type | 50 ° Single Deep |
| Size mm | 8.0 x 350 |
| Driver Bit Size | TX40 |
| Point Type | 25 ° Sharp with Single Slash |
| CE Standard Web | BS EN 14592:2008 |
| Thread Dia. mm | 8 |
| Lubrication | Wax |
| Carton Qty pcs | 225 |
| Carton Qty Packs | 9 |
| Substrates | Hardwood, Softwood |
| Included Items | TX40 S2 Bit (Qty 1) |
| Inner Thread Dia. mm | 5.6 |
| Fixed Washer Dia. mm | 21 |
| Head Dia. mm | 20.84 |
| Pack Dimensions L x W x H mm | 422 x 94 x 62 |
| Pack Weight kg | 2.05 |
| Application | Framing, Landscaping, Decking, Fencing, Stairs, Roofing, Gazebos, Pergolas, Sleepers |
| Thread Coverage | Partially Threaded |
