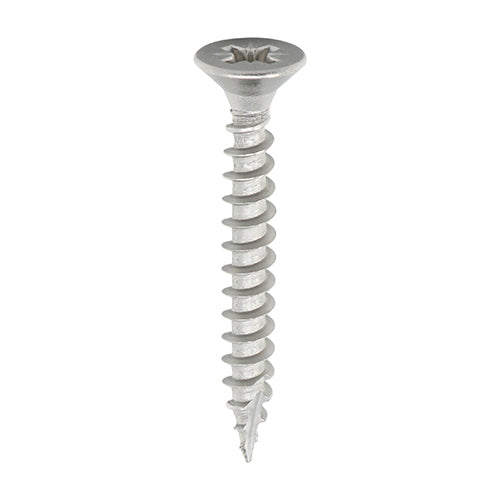

Classic Screw PZ2 CSK - A2 S/S - 4.0 x 50 (TIMpac 14)
TIMCO Classic Multi-Purpose Countersunk A2 Stainless Steel Woodcrews - 4.0 x 50
All the features and superior performance of the Classic Multi-Purpose Screw manufactured from A2 Stainless Steel. Ideal where ultimate corrosion resistance is required when fixing to softwoods, hardwood (pre-drilled), chipboard, MDF and plastic. Stainless steel must be used where there is corrosive environment and/or the base material has inherent corrosive characteristics e.g. Green Oak.
Double countersunk reduces the likelihood of head shear and assists completion of countersinking
40 ° deep single thread to provide a secure fixing with high pull-out resistance
Surface hardened up to 750 HV to prevent torque shearing under load and a core hardness of up to 450 HV for improved ductility
Single slash on 25mm+ to reduce torque and the likelihood of the timber splitting when the screw is inserted close to the edge
All sizes up to and including 75mm are fully threaded and lengths 80mm and above all have 70mm thread length
| Description | All the features and superior performance of the Classic Multi-Purpose Screw manufactured from A2 Stainless Steel. Ideal where ultimate corrosion resistance is required when fixing to softwoods, hardwood (pre-drilled), chipboard, MDF and plastic. Stainless steel must be used where there is corrosive environment and/or the base material has inherent corrosive characteristics e.g. Green Oak. |
| Product Code | 40050CHSSP |
| Pack Quantity | 14 |
| Pack Type | TIMpac |
| SKU Barcode | 5055331846822 |
| Pack Quantity Unit | Pieces |
| Recess Type | Pozi |
| Material | Austenitic Stainless Steel (A2-304) |
| Gauge | 8 |
| Substrates | Hardwood, Softwood, Chipboard, MDF, Plastic, Thin Sheet Metal, Corrosive Wood (e.g. Oak, Cedar) |
| Corrosion Rating | 4 - Urban & industrial areas with a moderate salt atmosphere |
| Driver Bit Size | PZ2 |
| Thread Type | Single Coarse 40 ° |
| Point Type | 25 ° Sharp with Single Slash |
| Length inch | 2 |
| Size mm | 4.0 x 50 |
| Length mm | 50 |
| Thread Length mm | 45 |
| Head Type | Double Countersunk |
| CE Standard Web | BS EN 14592:2008 |
| Size imp. | 8 x 2 |
| Thread Dia. mm | 4 |
| Carton Qty pcs | 140 |
| Carton Qty Packs | 10 |
| Head Dia. mm | 7.87 |
| Inner Thread Dia. mm | 2.5 |
| Pack Weight kg | 0.04 |
| Pack Dimensions L x W x H mm | 15 x 90 x 133 |
| Thread Coverage | Fully Threaded |
