Rising Butt HingeRIGHT E/Brass - 100 x 86 (Plain Bag 2)
Regular price
£8.56
inc. VAT
Regular price
£10.40
Sale
Sale price
£8.56
inc. VAT

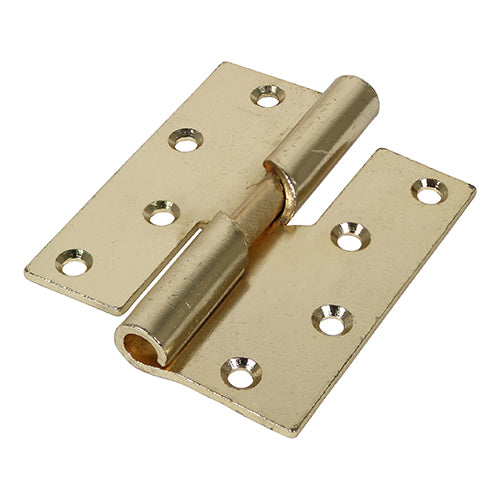

TIMCO Rising Butt Hinges Right Hand Steel Electro Brass - 100 x 86
Steel rising hinges feature a spiral knuckle that lifts the door throughout the opening cycle making it ideal for applications where there is an uneven floor surface or obstructions such as deep pile carpets. The spiral feature will also enable to the door to self close making this a popular hinge choice for toilet or cubicle doors. As the knuckle is not fixed, it enables the door to be lifted off the hinge making it ideal for situations when do
Lifts doors as they open - ideal for uneven floors
Self closing - ideal for cubicles
Door can be lifted off at a later date
| Pack Quantity | 2 |
| Knuckle Dia. mm | 15.5 |
| Thickness mm | 3 |
| Pack Type | Plain Bag |
| Hole Dia. mm | 6.9 |
| Length mm | 100 |
| Corner Type | Square |
| Length inch | 4 |
| Finish | Electro Brass |
| Pattern | 466 |
| Pack Quantity Unit | Pieces |
| Description | Steel rising hinges feature a spiral knuckle that lifts the door throughout the opening cycle making it ideal for applications where there is an uneven floor surface or obstructions such as deep pile carpets. The spiral feature will also enable to the door to self close making this a popular hinge choice for toilet or cubicle doors. As the knuckle is not fixed, it enables the door to be lifted off the hinge making it ideal for situations when do |
| Material | Steel |
| Open Width mm | 86 |
| Corrosion Rating | 2 - Occasionally damp/wet, rural and sheltered areas |
| Product Code | 434127 |
| SKU Barcode | 5056110808970 |
| Screws Required Per Pair | 16 |
| Max Door Weight kg | 40 |
| Carton Qty pcs | 20 pairs |
| Carton Qty Packs | 20 |
| Open Direction | Right |
| Rec Screw Dia. mm | 5 |
| Size L x W mm | 100 x 86 |
| Rec Screw Gauge imp. | 10 |
| Knuckle Type | Plain |
| Pack Weight kg | 0.06 |
| Pack Dimensions L x W x H mm | 170 x 92 x 10 |
