Rising Butt Hinge LEFT E/Brass - 75 x 72 (Plain Bag 2)
Regular price
£5.29
inc. VAT
Regular price
£6.57
Sale
Sale price
£5.29
inc. VAT

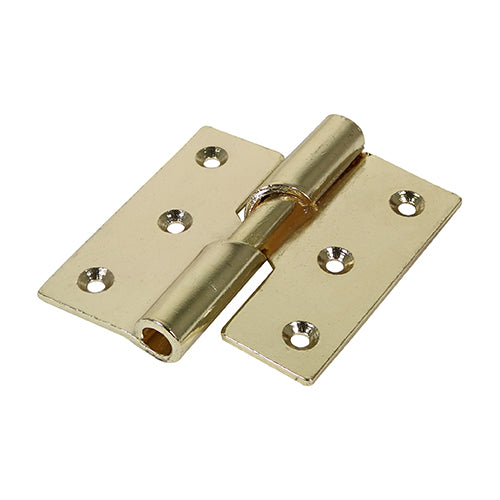

TIMCO Rising Butt Hinges Left Hand Steel Electro Brass - 75 x 72
Steel rising hinges feature a spiral knuckle that lifts the door throughout the opening cycle making it ideal for applications where there is an uneven floor surface or obstructions such as deep pile carpets. The spiral feature will also enable to the door to self close making this a popular hinge choice for toilet or cubicle doors. As the knuckle is not fixed, it enables the door to be lifted off the hinge making it ideal for situations when do
Lifts doors as they open - ideal for uneven floors
Self closing - ideal for cubicles
Door can be lifted off at a later date
| Knuckle Dia. mm | 14 |
| Length mm | 75 |
| Thickness mm | 2.5 |
| SKU Barcode | 5056110808949 |
| Screws Required Per Pair | 12 |
| Product Code | 434483 |
| Corner Type | Square |
| Length inch | 3 |
| Material | Steel |
| Pattern | 466 |
| Max Door Weight kg | 30 |
| Pack Quantity Unit | Pieces |
| Hole Dia. mm | 4.6 |
| Description | Steel rising hinges feature a spiral knuckle that lifts the door throughout the opening cycle making it ideal for applications where there is an uneven floor surface or obstructions such as deep pile carpets. The spiral feature will also enable to the door to self close making this a popular hinge choice for toilet or cubicle doors. As the knuckle is not fixed, it enables the door to be lifted off the hinge making it ideal for situations when do |
| Pack Quantity | 2 |
| Finish | Electro Brass |
| Pack Type | Plain Bag |
| Open Width mm | 72 |
| Corrosion Rating | 2 - Occasionally damp/wet, rural and sheltered areas |
| Carton Qty pcs | 30 pairs |
| Carton Qty Packs | 30 |
| Rec Screw Gauge imp. | 8 |
| Size L x W mm | 75 x 72 |
| Rec Screw Dia. mm | 4 |
| Open Direction | Left |
| Knuckle Type | Plain |
| Pack Weight kg | 0.34 |
| Pack Dimensions L x W x H mm | 170 x 92 x 10 |
