Cranked steel butt hinges with a loose pin that are ideal for use on light duty internal applications. The hinge features a removable pin to enable quick door hanging and removal at a later date.
Butt Hinge Loose Pin S/Chrome

Butt Hinge Loose Pin S/Chrome - 100 x 71 (Plain Bag 2)

SKU: 434520
£3.24 inc. VAT
£4.03 Sale £3.24 inc. VAT
Description

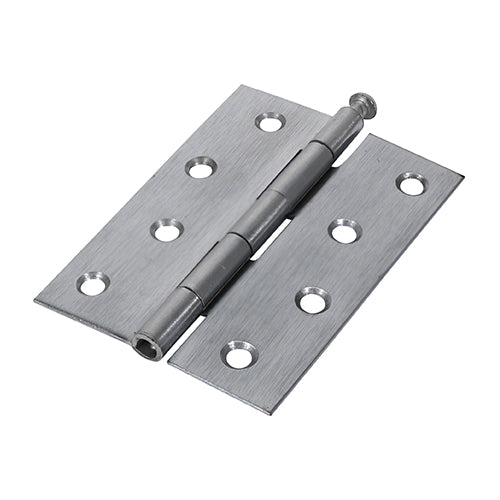

TIMCO Butt Hinges Loose Pin (1840) Steel Satin Chrome - 100 x 71

Cranked steel butt hinges with a loose pin that are ideal for use on light duty internal applications. The hinge features a removable pin to enable quick door hanging and removal at a later date.

Standard butt hinge designed for internal doors

Removal pin for quick door hanging

Pack Type Plain Bag
Pattern 1840
SKU Barcode 5056110808727
Pack Quantity Unit Pieces
Length inch 4
Thickness mm 1.7
Screws Required Per Pair 16
Max Door Weight kg 30
Finish Satin Chrome
Hole Dia. mm 6
Product Code 434520
Description Cranked steel butt hinges with a loose pin that are ideal for use on light duty internal applications. The hinge features a removable pin to enable quick door hanging and removal at a later date.
Pack Quantity 2
Knuckle Dia. mm 9.3
Length mm 100
Corner Type Square
Material Steel
Open Width mm 71
Corrosion Rating 2 - Occasionally damp/wet, rural and sheltered areas
Carton Qty pcs 60 pairs
Carton Qty Packs 60
Size L x W mm 100 x 71
Rec Screw Dia. mm 4.5
Rec Screw Gauge imp. 9
Knuckle Type Plain
Pack Weight kg 0.25
Pack Dimensions L x W x H mm 170 x 92 x 10
