Rising Butt Hinge LEFT Zinc - 75 x 72 (Plain Bag 2)
Regular price
£4.19
inc. VAT
Regular price
£5.22
Sale
Sale price
£4.19
inc. VAT

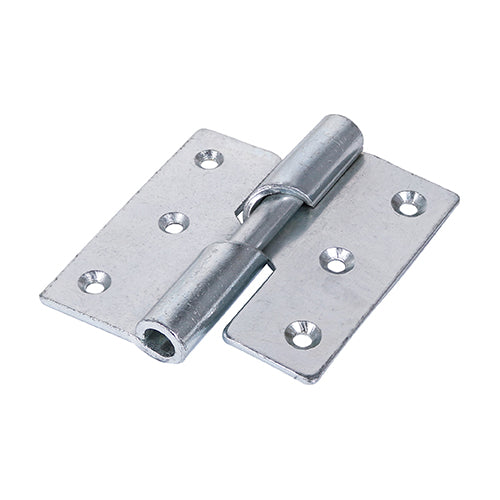

TIMCO Rising Butt Hinges Left Hand Steel Silver - 75 x 72
Steel rising hinges feature a spiral knuckle that lifts the door throughout the opening cycle making it ideal for applications where there is an uneven floor surface or obstructions such as deep pile carpets. The spiral feature will also enable to the door to self close making this a popular hinge choice for toilet or cubicle doors. As the knuckle is not fixed, it enables the door to be lifted off the hinge making it ideal for situations when do
Lifts doors as they open - ideal for uneven floors
Self closing - ideal for cubicles
Door can be lifted off at a later date
| Finish | Zinc |
| Pattern | 466 |
| Material | Steel |
| Open Width mm | 72 |
| Pack Quantity | 2 |
| Knuckle Dia. mm | 14 |
| Thickness mm | 2.5 |
| Pack Type | Plain Bag |
| SKU Barcode | 5056110808901 |
| Screws Required Per Pair | 12 |
| Max Door Weight kg | 30 |
| Product Code | 434910 |
| Description | Steel rising hinges feature a spiral knuckle that lifts the door throughout the opening cycle making it ideal for applications where there is an uneven floor surface or obstructions such as deep pile carpets. The spiral feature will also enable to the door to self close making this a popular hinge choice for toilet or cubicle doors. As the knuckle is not fixed, it enables the door to be lifted off the hinge making it ideal for situations when do |
| Hole Dia. mm | 4.6 |
| Corrosion Rating | 2 - Occasionally damp/wet, rural and sheltered areas |
| Length mm | 75 |
| Corner Type | Square |
| Length inch | 3 |
| Pack Quantity Unit | Pieces |
| Carton Qty pcs | 30 pairs |
| Carton Qty Packs | 30 |
| Rec Screw Dia. mm | 4 |
| Size L x W mm | 75 x 72 |
| Open Direction | Left |
| Rec Screw Gauge imp. | 8 |
| Knuckle Type | Plain |
| Pack Weight kg | 0.34 |
| Pack Dimensions L x W x H mm | 170 x 92 x 10 |
