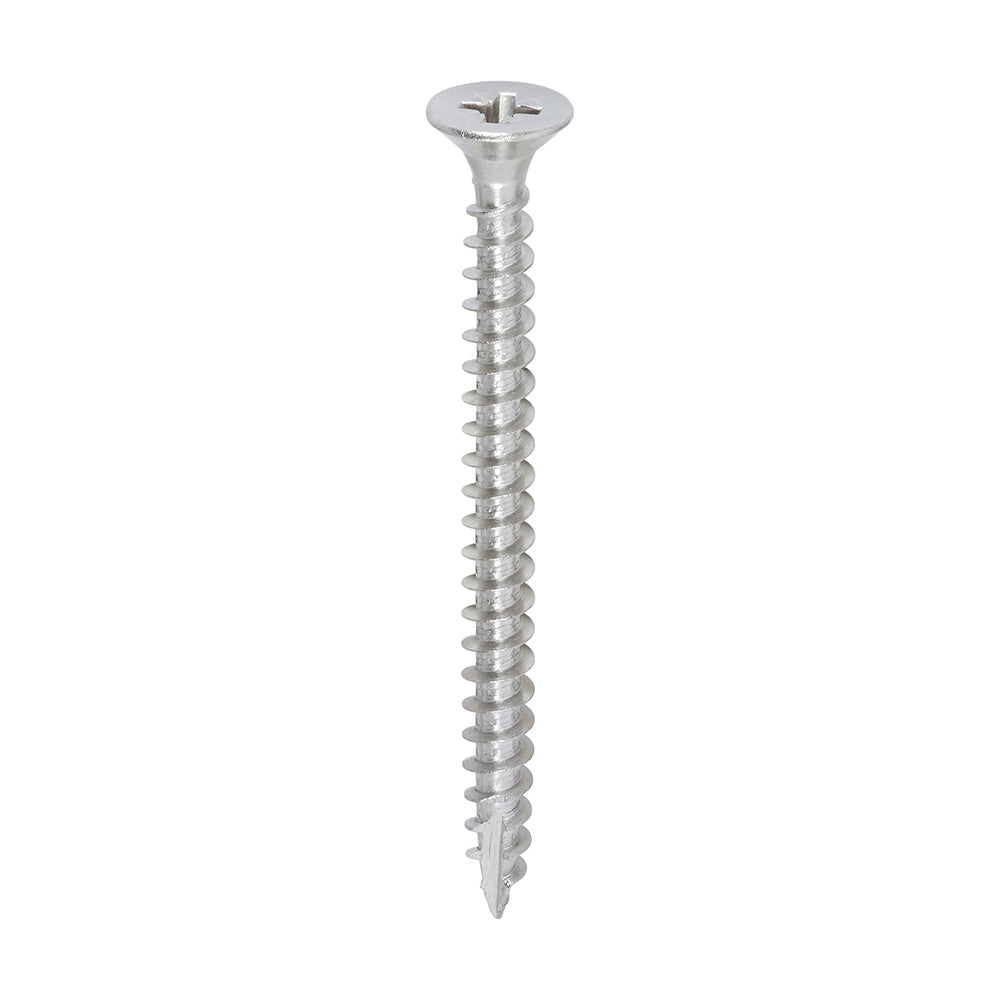

Classic Screw PZ2 CSK A2 SS - 5.0 x 60 (Box 200)
TIMCO Classic Multi-Purpose Countersunk A2 Stainless Steel Woodcrews - 5.0 x 60
All the features and superior performance of the Classic Multi-Purpose Screw manufactured from A2 Stainless Steel. Ideal where ultimate corrosion resistance is required when fixing to softwoods, hardwood (pre-drilled), chipboard, MDF and plastic. Stainless steel must be used where there is corrosive environment and/or the base material has inherent corrosive characteristics e.g. Green Oak.
Double countersunk reduces the likelihood of head shear and assists completion of countersinking
40 ° deep single thread to provide a secure fixing with high pull-out resistance
Single slash on 25mm+ to reduce torque and the likelihood of the timber splitting when the screw is inserted close to the edge
All sizes up to and including 75mm are fully threaded and lengths 80mm and above all have 70mm thread length
| Pack Quantity | 200 |
| Product Code | 50060CLASS |
| Pack Type | Box |
| Description | All the features and superior performance of the Classic Multi-Purpose Screw manufactured from A2 Stainless Steel. Ideal where ultimate corrosion resistance is required when fixing to softwoods, hardwood (pre-drilled), chipboard, MDF and plastic. Stainless steel must be used where there is corrosive environment and/or the base material has inherent corrosive characteristics e.g. Green Oak. |
| SKU Barcode | 5055017524235 |
| Pack Quantity Unit | Pieces |
| Recess Type | Pozi |
| Material | Austenitic Stainless Steel (A2-304) |
| Gauge | 10 |
| Substrates | Hardwood, Softwood, Chipboard, MDF, Plastic, Thin Sheet Metal, Corrosive Wood (e.g. Oak, Cedar) |
| Corrosion Rating | 4 - Urban & industrial areas with a moderate salt atmosphere |
| Driver Bit Size | PZ2 |
| Length mm | 60 |
| Thread Type | Single Coarse 40 ° |
| Point Type | 25 ° Sharp with Single Slash |
| Thread Length mm | 55 |
| Head Type | Double Countersunk |
| Length inch | 2 |
| Size mm | 5.0 x 60 |
| Size imp. | 10 x 2 |
| CE Standard Web | BS EN 14592:2008 |
| Thread Dia. mm | 5 |
| Carton Qty pcs | 3200 |
| Carton Qty Packs | 16 |
| Head Dia. mm | 9.74 |
| Inner Thread Dia. mm | 3.1 |
| Pack Dimensions L x W x H mm | 135 x 90 x 90 |
| Pack Weight kg | 1.02 |
| Thread Coverage | Fully Threaded |
