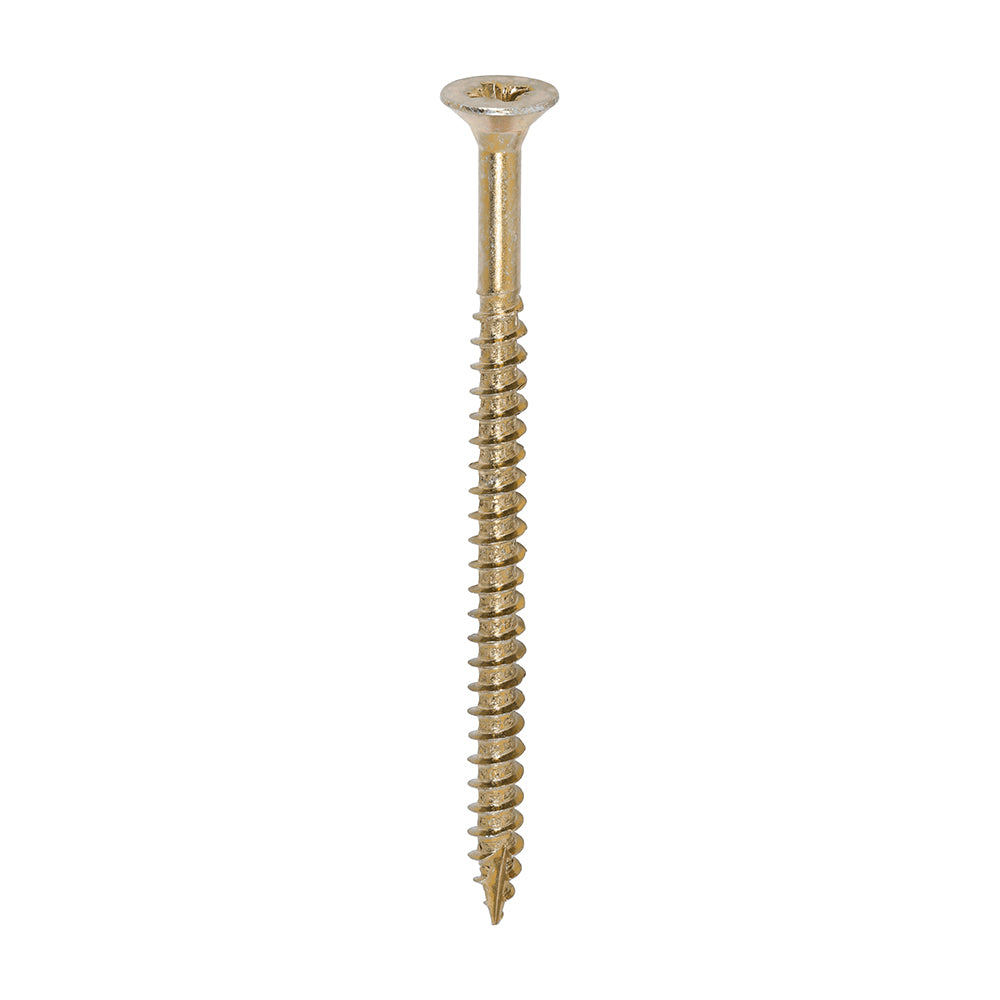

TIMCO Classic Multi-Purpose Countersunk Gold Woodscrews - 6.0 x 90
Specifically designed as a multi-purpose product, the 25 ° sharp point, special thread design, lubrication and corrosion resistant plating ensures the screw will consistently perform efficiently in hardwood, chipboard, MDF, plastic and thin sheet metal, whilst offering exceptional holding power.
Double countersunk reduces the likelihood of head shear and assists completion of countersinking
Patented lubrication, designed to enhance screw insertion time and provides greater resistance to corrosion
40 ° deep single thread to provide a secure fixing with high pull-out resistance
Surface hardened up to 750 HV to prevent torque shearing under load and a core hardness of up to 450 HV for improved ductility
Single slash on 25mm+ to reduce torque and the likelihood of the timber splitting when the screw is inserted close to the edge
All sizes up to and including 75mm are fully threaded and lengths 80mm and above all have 70mm thread length
Product Code | 60090CLAF |
Pack Quantity | 100 |
Description | Specifically designed as a multi-purpose product, the 25 ° sharp point, special thread design, lubrication and corrosion resistant plating ensures the screw will consistently perform efficiently in hardwood, chipboard, MDF, plastic and thin sheet metal, whilst offering exceptional holding power. |
Pack Type | Box |
SKU Barcode | 5055017507573 |
Pack Quantity Unit | Pieces |
Recess Type | Pozi |
Material | Carbon Steel |
Finish | Zinc & Yellow |
Gauge | 12 |
Corrosion Rating | 2 - Occasionally damp/wet, rural and sheltered areas |
Substrates | Hardwood, Softwood, Chipboard, MDF, Plastic, Thin Sheet Metal |
Lubrication | Gleitmo |
Thread Length mm | 70 |
Size mm | 6.0 x 90 |
Head Type | Double Countersunk |
Length mm | 90 |
Thread Type | Single Coarse 40 ° |
Length inch | 3 |
Driver Bit Size | PZ3 |
Point Type | 25 ° Sharp with Single Slash |
Size imp. | 12 x 3 |
CE Standard Web | BS EN 14592:2008 |
Thread Dia. mm | 6 |
Carton Qty pcs | 1500 |
Carton Qty Packs | 15 |
Head Dia. mm | 11.57 |
Inner Thread Dia. mm | 3.8 |
Pack Dimensions L x W x H mm | 135 x 90 x 60 |
Pack Weight kg | 1.1 |
Thread Coverage | Partially Threaded |
