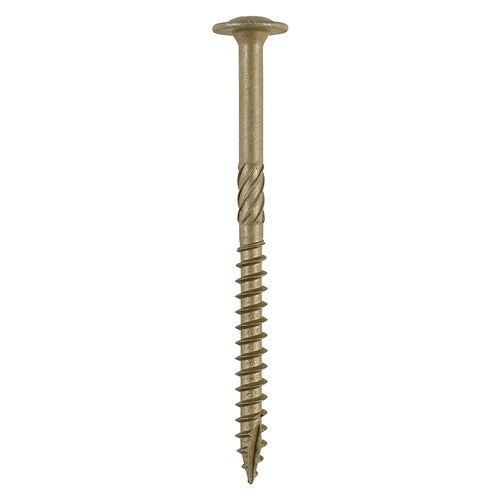

Timber Frame Screw WAFER Green - 6.7 x 95 (Box 50)
TIMCO Wafer Head Exterior Green Timber Screws - 6.7 x 95
Designed as an alternative to the traditional coach screw mainly used for timber to timber applications. Wafer head for improved clamping and a low profile finish. Coated with a patented multi-layer corrosion resistant plating to withstand 1,000 hours salt spray test, this screw is ideal for external applications.
Wafer head countersunk and TX30 recess
Long lasting plating withstands up to 1,000 hours salt spray resistance in accordance to BS EN 9227:2012
Patented lubrication, designed to enhance screw insertion time and provides greater resistance to corrosion
Helix shank for removing debris and to improve clamping
50 ° deep single thread to provide a secure fixing with high pull-out resistance
Single slash point to reduce torque and the risk of timber splitting at low edge distance
| Product Code | 95INW |
| Pack Quantity | 50 |
| Description | Designed as an alternative to the traditional coach screw mainly used for timber to timber applications. Wafer head for improved clamping and a low profile finish. Coated with a patented multi-layer corrosion resistant plating to withstand 1,000 hours salt spray test, this screw is ideal for external applications. |
| Pack Type | Box |
| Driver Bit Type | TX Drive |
| SKU Barcode | 5055331860897 |
| Pack Quantity Unit | Pieces |
| Recess Type | TX Drive |
| Colour | Olive Green |
| Finish | Exterior (Green Organic) |
| Material | Carbon Steel |
| Shank Type | Helix |
| Corrosion Rating | 3 - Urban & industrial areas with a low salt atmosphere |
| Head Type | Wafer |
| Driver Bit Size | TX30 |
| Thread Type | 50 ° Single Deep |
| Point Type | 25 ° Sharp with Single Slash |
| Size mm | 6.7 x 95 |
| Length mm | 95 |
| Thread Length mm | 52 |
| CE Standard Web | BS EN 14592:2008 |
| Lubrication | Wax |
| Thread Dia. mm | 6.7 |
| Carton Qty pcs | 750 |
| Carton Qty Packs | 15 |
| Substrates | Hardwood, Softwood |
| Included Items | TX30 S2 Bit (Qty 1) |
| Inner Thread Dia. mm | 4.4 |
| Head Dia. mm | 16.08 |
| Fixed Washer Dia. mm | 16 |
| Pack Dimensions L x W x H mm | 135 x 90 x 60 |
| Pack Weight kg | 0.88 |
| Application | Framing, Landscaping, Decking, Fencing, Stairs, Roofing, Gazebos, Pergolas, Sleepers |
| Thread Coverage | Partially Threaded |
