Adjustable hook and band hinges are for hanging doors or gates flush with the frame or post. They are ideal for heavy weight, high use doors, gates, garages and stables in domestic, commercial and agricultural applications. They feature an adjustable eye bolt to allow for gate alignment whilst being fitted or at a later stage if any movement occurs. Fixings included.
Adjustable Band Hook Plate HDG

Adjustable Band Hook Plate HDG - 600mm (Plain Bag 2)

SKU: ABH600G
£29.26 inc. VAT
£35.11 Sale £29.26 inc. VAT
Description

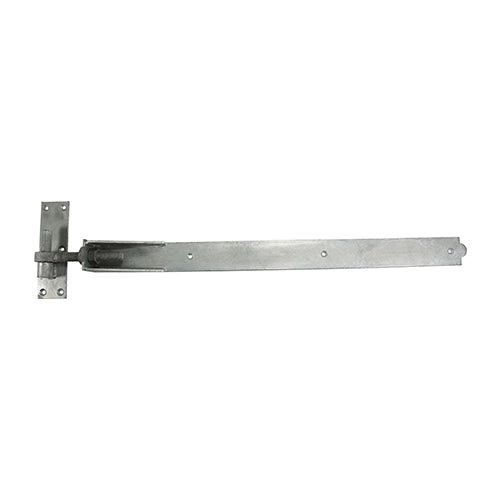

TIMCO Adjustable Band & Hook on Plates Hinges Hot Dipped Galvanised - 600mm

Adjustable hook and band hinges are for hanging doors or gates flush with the frame or post. They are ideal for heavy weight, high use doors, gates, garages and stables in domestic, commercial and agricultural applications. They feature an adjustable eye bolt to allow for gate alignment whilst being fitted or at a later stage if any movement occurs. Fixings included.

Pack Type Plain Bag
Product Code ABH600G
Description Adjustable hook and band hinges are for hanging doors or gates flush with the frame or post. They are ideal for heavy weight, high use doors, gates, garages and stables in domestic, commercial and agricultural applications. They feature an adjustable eye bolt to allow for gate alignment whilst being fitted or at a later stage if any movement occurs. Fixings included.
Pack Quantity 2
SKU Barcode 5055893360552
Pack Quantity Unit Pieces
Band Length mm 600
Band Width mm 50
No. of Screw Holes 14
Band Thickness mm 5
Carriage Bolt Size mm M12 x 65
No. of Bolt Holes 2
No. of Carriage Bolts 2
Band Length inch 24
Corrosion Rating 4 - Urban & industrial areas with a moderate salt atmosphere
Finish Hot Dipped Galvanised
No. of CSK Screws 14
Hook Plate Size L x W mm 160 x 50
Pin Dia. inch 45019
Pin Dia. mm 19
Type Adjustable
To Suit Gate Width mm 1200 - 1800
Material Carbon Steel
Carton Qty pcs 8
CSK Screw Size mm 6.0 x 40
To Fit Carriage Bolt Dia. mm M12
Carton Qty Packs 4 Pairs
Washer Size mm M12
Nut Size mm M12
No. of Washers 2
Nut Type Hex Full
No. of Nuts 2
Washer Type Form A
Rec Screw Gauge imp. 12
Rec Screw Dia. mm 6
Included Items M12 x 65mm Carriage Bolts (Qty 2) ?M12 Hex Full Nuts (Qty 2) ?M12 Form A Washers (Qty 2) ?6.0 x 40mm Countersunk Screws (Qty 14)
Pack Dimensions L x W x H mm 178 x 30 x 610
Pack Weight kg 5.79
