Adjustable hook and band hinges are for hanging doors or gates flush with the frame or post. They are ideal for heavy weight, high use doors, gates, garages and stables in domestic, commercial and agricultural applications. They feature an adjustable eye bolt to allow for gate alignment whilst being fitted or at a later stage if any movement occurs. Fixings included.
Adjustable Band Hook Plate Blk

Adjustable Band Hook Plate Blk - 750mm (Plain Bag 2)

SKU: ABH750B
£31.37 inc. VAT
£37.85 Sale £31.37 inc. VAT
Description

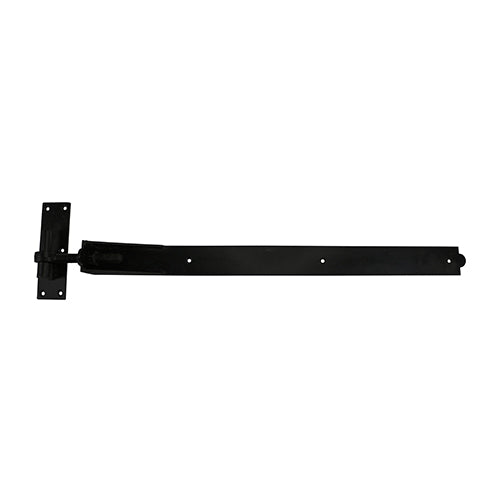

TIMCO Adjustable Band & Hook on Plates Hinges Black - 750mm

Adjustable hook and band hinges are for hanging doors or gates flush with the frame or post. They are ideal for heavy weight, high use doors, gates, garages and stables in domestic, commercial and agricultural applications. They feature an adjustable eye bolt to allow for gate alignment whilst being fitted or at a later stage if any movement occurs. Fixings included.

Product Code ABH750B
Description Adjustable hook and band hinges are for hanging doors or gates flush with the frame or post. They are ideal for heavy weight, high use doors, gates, garages and stables in domestic, commercial and agricultural applications. They feature an adjustable eye bolt to allow for gate alignment whilst being fitted or at a later stage if any movement occurs. Fixings included.
Pack Quantity 2
Pack Type Plain Bag
SKU Barcode 5055893360507
Pack Quantity Unit Pieces
Band Length inch 30
Band Thickness mm 5
Pin Dia. mm 19
No. of Bolt Holes 2
Band Length mm 750
No. of Screw Holes 14
No. of Carriage Bolts 2
Band Width mm 60
Carriage Bolt Size mm M12 x 65
Hook Plate Size L x W mm 200 x 60
Pin Dia. inch 45019
Corrosion Rating 2 - Occasionally damp/wet, rural and sheltered areas
To Suit Gate Width mm 1500 - 2250
Material Carbon Steel
No. of CSK Screws 14
CSK Screw Size mm 6.0 x 40
To Fit Carriage Bolt Dia. mm M12
Finish Epoxy Black
Carton Qty pcs 8
Type Adjustable
Carton Qty Packs 4 Pairs
Washer Size mm M12
Nut Type Hex Full
No. of Nuts 2
Nut Size mm M12
Washer Type Form A
No. of Washers 2
Rec Screw Gauge imp. 12
Rec Screw Dia. mm 6
Included Items M12 x 65mm Carriage Bolts (Qty 2) ?M12 Hex Full Nuts (Qty 2) ?M12 Form A Washers (Qty 2) ?6.0 x 40mm Countersunk Screws (Qty 14)
Pack Weight kg 7.35
Pack Dimensions L x W x H mm 152 x 30 x 914
