Ideal for use on fieldgates and driveway gates that are to be hung on timber, concrete or masonry posts. The hinge set provides exceptional support to the gate as the top band wraps around the gate and are fixed with cup square bolts to firmly secure in place. The bottom fitting clamps around the heel of the gate and is adjustable to allow for easy gate alignment after fitting. This is particularly useful when hanging pairs of gates. ?Depending
Adjustable Hinge Set Hook HDG

Adjustable Hinge Set Hook HDG - 450mm (Plain Bag 1)

SKU: AFHP450G
£26.96 inc. VAT
£32.54 Sale £26.96 inc. VAT
Description

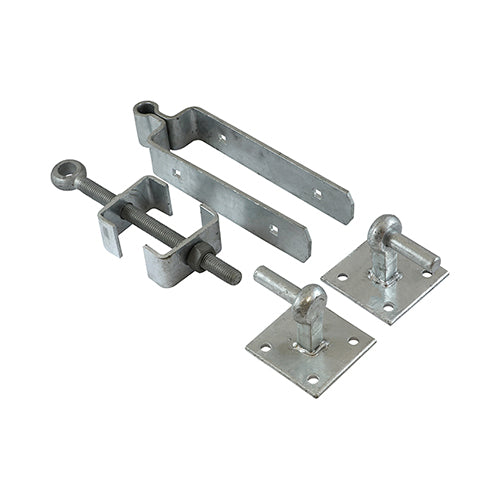

TIMCO Adjustable Gate Hinge Set With Hook On Plate Hot Dipped Galvanised - 450mm

Ideal for use on fieldgates and driveway gates that are to be hung on timber, concrete or masonry posts. The hinge set provides exceptional support to the gate as the top band wraps around the gate and are fixed with cup square bolts to firmly secure in place. The bottom fitting clamps around the heel of the gate and is adjustable to allow for easy gate alignment after fitting. This is particularly useful when hanging pairs of gates. ?Depending

Hook to bolt features a 9mm drilled hole for R clips or linch pins (not included) to be fitted to prevent the gate being lifted off

Hooks to drive are barbed, preventing the gate from working loose

Pack Type Plain Bag
Product Code AFHP450G
Pack Quantity 1
Description Ideal for use on fieldgates and driveway gates that are to be hung on timber, concrete or masonry posts. The hinge set provides exceptional support to the gate as the top band wraps around the gate and are fixed with cup square bolts to firmly secure in place. The bottom fitting clamps around the heel of the gate and is adjustable to allow for easy gate alignment after fitting. This is particularly useful when hanging pairs of gates. ?Depending
SKU Barcode 5055893361177
Pack Quantity Unit Each
Material Carbon Steel
Finish Hot Dipped Galvanised
Coach Screw Size mm M10 x 65
To Suit Gate Thickness inch 3
Corrosion Rating 4 - Urban & industrial areas with a moderate salt atmosphere
Carriage Bolt Size mm M10 x 95
To Suit Gate Width mm 1200 - 2700
Top Strap L inch 18
Heel Clip Size L x W x D mm 86 x 50 x 32
Gate Eye Dia. x L mm M19 x 250
Strap Thickness mm 6
Hook Plate Size L x W mm 100 x 100
Pin Dia. inch
No. of Coach Screws 8
To Suit Gate Width ft 45173
Top Strap L mm 450
To Suit Gate Thickness mm 75
Type Adjustable
Pin Dia. mm 19
Contents 450mm Top Strap (Qty 1) ?M19 x 250mm Adjustable Bottom Fitting (Qty 1) ?100 x 100mm Hook on Plates (Qty 2) ?M10 x 95mm Carriage Bolts (Qty 3) ?M10 x 65mm Coach Screws (Qty 8) ?M10 Full Hex Nuts (Qty 3) ?M10 Washers (Qty 3)
No. of Carriage Bolts 3
To Fit Carriage Bolt Dia. mm M10
Carton Qty pcs 4
Carton Qty Packs 4
Washer Size mm M10
Nut Size mm M10
No. of Washers 3
Nut Type Hex Full
No. of Nuts 3
Washer Type Form A
Pack Dimensions L x W x H mm 178 x 30 x 610
Pack Weight kg 5.63
