WingTip Screw SDRILL No4 BIMET - 5.5 x 120 (Box 100)
Regular price
£103.30
inc. VAT
Regular price
£124.06
Sale
Sale price
£103.30
inc. VAT

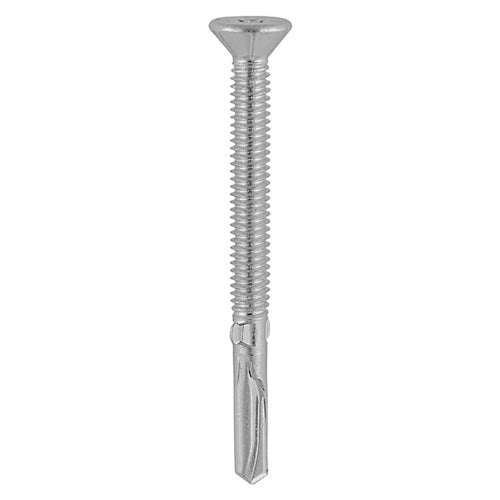

TIMCO Self-Drilling Wing-Tip Steel to Timber Heavy Section A2 Stainless Steel Bi-Metal Screws - 5.5 x 120
Specifically designed to attach wood to metal (Max. 12mm). Metric thread with wings designed to ream out the timber, so the screw can achieve Max. R.P.M. without burning out. When the wings hit the metal they will break off to permit the thread to self-tap into the metal. NOTE: Partially threaded.
Hardened carbon steel drill tip fused on to an A2-304 Austenitic Stainless Steel body
| Product Code | BMHW120 |
| Pack Type | Box |
| Description | Specifically designed to attach wood to metal (Max. 12mm). Metric thread with wings designed to ream out the timber, so the screw can achieve Max. R.P.M. without burning out. When the wings hit the metal they will break off to permit the thread to self-tap into the metal. NOTE: Partially threaded. |
| Pack Quantity | 100 |
| SKU Barcode | 5055893352243 |
| To Suit Timber mm | 50 - 84 |
| Pack Quantity Unit | Pieces |
| Recess Type | Phillips |
| Finish | Exterior (Silver Organic) |
| Rec RPM | 1,000 - 1,800 |
| Material | Bi-Metal/A2-304 Stainless Steel/Carbon Steel |
| Substrates | Steel, Timber |
| Corrosion Rating | 4 - Urban & industrial areas with a moderate salt atmosphere |
| Point Type | Self-Drilling No.5 |
| Size mm | 5.5 x 120 |
| Head Type | Countersunk with Ribs |
| Driver Bit Size | PH3 |
| Thread Type | Metric, *P/T = Partially Threaded |
| Length mm | 120 |
| Effective Thread Length mm | 45 *P/T |
| Thread Dia. mm | 5.5 |
| Carton Qty pcs | 1600 |
| Carton Qty Packs | 16 |
| Max Drilling Thickness mm | 12 |
| Head Height mm | 3 |
| Drill Tip Length mm | 21 |
| Type | For Timber to Heavy Section Steel |
| Head Dia. mm | 10.5 |
| Max Fixture Thickness mm | 92 |
| Pack Dimensions L x W x H mm | 135 x 90 x 90 |
| Pack Weight kg | 1.675 |
| Thread Coverage | Partially Threaded |
