LowPancake Scrw PH2 SDRILL EXT - 5.5 x 26 (Box 500)
Regular price
£19.72
inc. VAT
Regular price
£23.86
Sale
Sale price
£19.72
inc. VAT

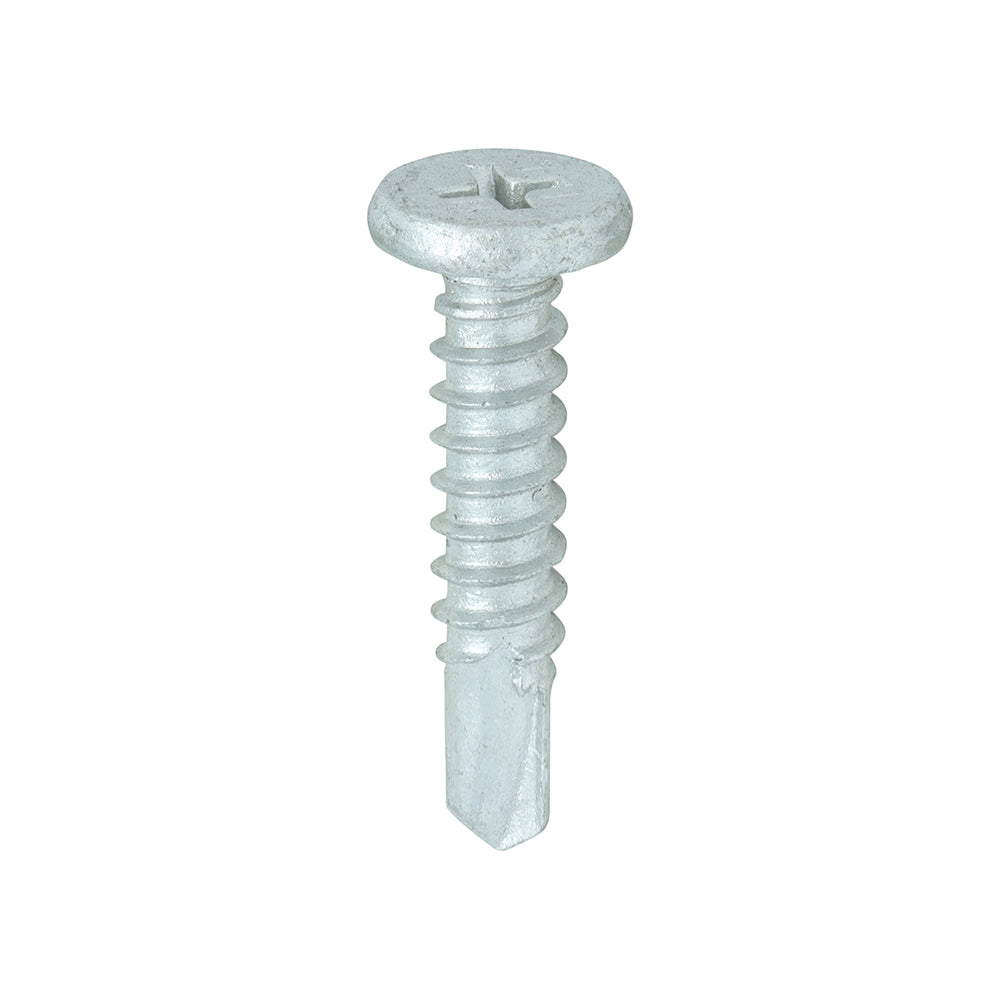

TIMCO Self-Drilling Metal Framing Low Profile Pancake Head Exterior Silver Screws - 5.5 x 26
A medium duty metal to metal screw with a large flat surface under the head, making it ideal for fixing thinner sheet material when a flush finish is required. Silver organic plated to withstand over 500 hours salt spray test.
Metsec Tested
Large head diameter for increased clamping
Coarse 60 ° self-tapping thread for extreme grip & excellent pull-out
Phillips No.2 recess for a positive drive
| Pack Quantity | 500 |
| Product Code | FP26 |
| Description | A medium duty metal to metal screw with a large flat surface under the head, making it ideal for fixing thinner sheet material when a flush finish is required. Silver organic plated to withstand over 500 hours salt spray test. |
| Pack Type | Box |
| SKU Barcode | 5055017591312 |
| Pack Quantity Unit | Pieces |
| Recess Type | Phillips |
| Finish | Exterior (Silver Organic) |
| Corrosion Rating | 3 - Urban & industrial areas with a low salt atmosphere |
| Included Items | PH2 S2 Bit (Qty 1) |
| Colour | Silver |
| Gauge | 12 |
| Material | Carbon Steel |
| Length inch | 1 |
| Size mm | 5.5 x 26 |
| Head Type | Low Profile Pancake |
| Length mm | 26 |
| Driver Bit Size | PH2 |
| Point Type | Self-Drilling |
| Substrates | Steel |
| Thread Type | 60 ° Self-Tapping |
| CE Standard Web | BS EN 14566:2008, BS EN 10666:2008 |
| Size imp. | 12 x 1 |
| Thread Dia. mm | 5.5 |
| Carton Qty pcs | 4000 |
| Carton Qty Packs | 8 |
| Max Drilling Thickness mm | 5 |
| Rec RPM | 1,000 - 1,800 |
| Head Dia. mm | 10.3 |
| Effective Thread Length mm | 16 |
| Drill Tip Length mm | 6 |
| Head Height mm | 2 |
| Pack Weight kg | 1.854 |
| Pack Dimensions L x W x H mm | 135 x 90 x 90 |
| Thread Coverage | Fully Threaded |
