An ideal high security lock for gates where key access from the outside and inside is required. The lock features a long throw of 70mm to clear any gate to frame gaps. Supplied with a brass escutcheon for a clean flush finish around the lock cylinder or alternatively a rim lock escutcheon handle can be used (sold separately). Fixings included.

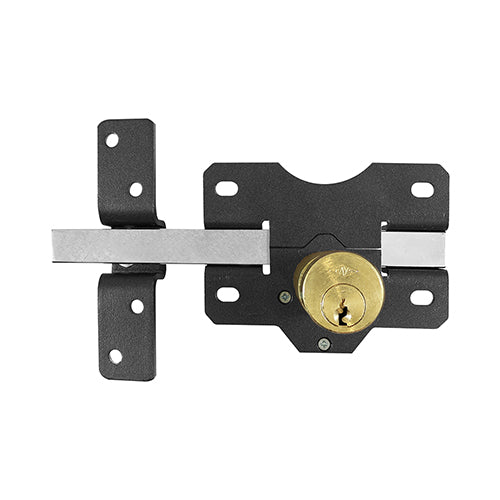

Long Throw Gate Lock - Double

Long Throw Gate Lock - Double - 50mm (Box 1)

SKU: GLD50
£42.76 inc. VAT
£51.51 Sale £42.76 inc. VAT
Description

TIMCO Throw Locks Double Black - 50mm

An ideal high security lock for gates where key access from the outside and inside is required. The lock features a long throw of 70mm to clear any gate to frame gaps. Supplied with a brass escutcheon for a clean flush finish around the lock cylinder or alternatively a rim lock escutcheon handle can be used (sold separately). Fixings included.

Supplied with 3 keys

SKU Barcode 5055893382400
Pack Type Box
Description An ideal high security lock for gates where key access from the outside and inside is required. The lock features a long throw of 70mm to clear any gate to frame gaps. Supplied with a brass escutcheon for a clean flush finish around the lock cylinder or alternatively a rim lock escutcheon handle can be used (sold separately). Fixings included.
Product Code GLD50
Pack Quantity 1
Pack Quantity Unit Each
Finish Epoxy Black
Locking Option Outside and Inside
Lock Type Double
Max Door Thickness mm 50
Material Carbon Steel
Cylinder Dia. mm 26
No. of Screw Holes 8
Keep Size H x W mm 125 x 28
Corrosion Rating 2 - Occasionally damp/wet, rural and sheltered areas
Lock Case Size H x D mm 106 x 70
Included Items 5.5 x 20mm Pan Head Self-Tapping Screws (Qty 8) 3.0 x 16mm Pan Head Chipboard Screws (Qty 3)
Bolt Length mm 70
Carton Qty pcs 25
Carton Qty Packs 25
No. of Pan Screws 11
Pan Screw Size mm 5.5 x 20 and 3.0 x 16
Pack Weight kg 0.97
Pack Dimensions L x W x H mm 215 x 98 x 80
