An ideal high security lock for gates where key access from the outside and inside is required. The lock features a long throw of 70mm to clear any gate to frame gaps. Supplied with a brass escutcheon for a clean flush finish around the lock cylinder or alternatively a rim lock escutcheon handle can be used (sold separately). Fixings included.

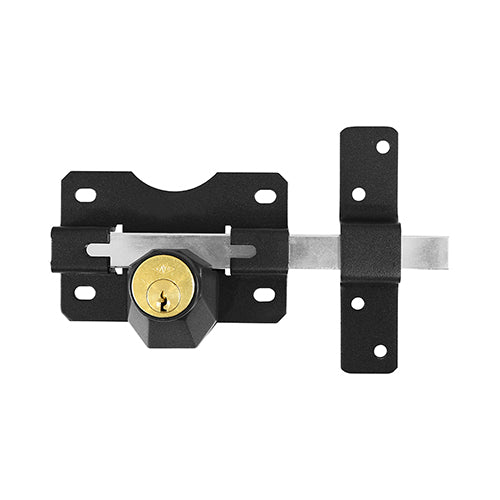

Long Throw Gate Lock - Double

Long Throw Gate Lock - Double - 70mm (Box 1)

SKU: GLD70
£46.33 inc. VAT
£55.62 Sale £46.33 inc. VAT
Description

TIMCO Throw Locks Double Black - 70mm

An ideal high security lock for gates where key access from the outside and inside is required. The lock features a long throw of 70mm to clear any gate to frame gaps. Supplied with a brass escutcheon for a clean flush finish around the lock cylinder or alternatively a rim lock escutcheon handle can be used (sold separately). Fixings included.

Supplied with 3 keys

Pack Type Box
Description An ideal high security lock for gates where key access from the outside and inside is required. The lock features a long throw of 70mm to clear any gate to frame gaps. Supplied with a brass escutcheon for a clean flush finish around the lock cylinder or alternatively a rim lock escutcheon handle can be used (sold separately). Fixings included.
SKU Barcode 5055893382417
Product Code GLD70
Pack Quantity 1
Finish Epoxy Black
Pack Quantity Unit Each
Max Door Thickness mm 70
Corrosion Rating 2 - Occasionally damp/wet, rural and sheltered areas
Material Carbon Steel
Locking Option Outside and Inside
Keep Size H x W mm 125 x 28
Cylinder Dia. mm 26
No. of Screw Holes 8
Lock Type Double
Lock Case Size H x D mm 106 x 70
Included Items 5.5 x 20mm Pan Head Self-Tapping Screws (Qty 8) 3.0 x 16mm Pan Head Chipboard Screws (Qty 3)
Bolt Length mm 70
Carton Qty pcs 20
Carton Qty Packs 20
Pan Screw Size mm 5.5 x 20 and 3.0 x 16
No. of Pan Screws 11
Pack Dimensions L x W x H mm 218 x 119 x 84
Pack Weight kg 1.03
