An ideal high security lock for gates where key access from the outside is required. The lock can be opened from the inside without the use of a key providing quick and easy access. The bolt features a long throw of 70mm to clear any gate to frame gaps. Supplied with a brass escutcheon for a clean flush finish around the lock cylinder or alternatively a rim lock escutcheon handle can be used (sold separately). Fixings included.

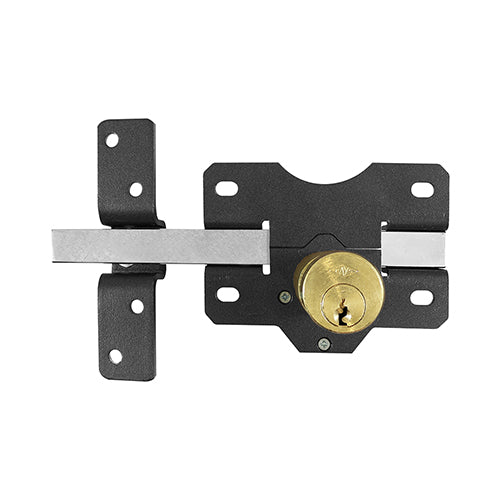

Long Throw Gate Lock - Single

Long Throw Gate Lock - Single - 50mm (Box 1)

SKU: GLS50
£34.44 inc. VAT
£41.41 Sale £34.44 inc. VAT
Description

TIMCO Throw Locks Single Black - 50mm

An ideal high security lock for gates where key access from the outside is required. The lock can be opened from the inside without the use of a key providing quick and easy access. The bolt features a long throw of 70mm to clear any gate to frame gaps. Supplied with a brass escutcheon for a clean flush finish around the lock cylinder or alternatively a rim lock escutcheon handle can be used (sold separately). Fixings included.

Supplied with 3 keys

SKU Barcode 5055893382424
Pack Type Box
Description An ideal high security lock for gates where key access from the outside is required. The lock can be opened from the inside without the use of a key providing quick and easy access. The bolt features a long throw of 70mm to clear any gate to frame gaps. Supplied with a brass escutcheon for a clean flush finish around the lock cylinder or alternatively a rim lock escutcheon handle can be used (sold separately). Fixings included.
Product Code GLS50
Pack Quantity 1
Pack Quantity Unit Each
Finish Epoxy Black
Cylinder Dia. mm 26
Corrosion Rating 2 - Occasionally damp/wet, rural and sheltered areas
Included Items 5.5 x 20mm Pan Head Self-Tapping Screws (Qty 8) 3.0 x 16mm Pan Head Chipboard Screws (Qty 3)
Material Carbon Steel
No. of Screw Holes 8
Lock Case Size H x D mm 106 x 70
Max Door Thickness mm 50
Lock Type Single
Locking Option Outside Only
Keep Size H x W mm 125 x 28
Bolt Length mm 70
Carton Qty pcs 25
Carton Qty Packs 25
No. of Pan Screws 11
Pan Screw Size mm 5.5 x 20 and 3.0 x 16
Pack Dimensions L x W x H mm 215 x 98 x 80
Pack Weight kg 0.87
