The cranked pattern hook and band hinges are for hanging the door or gate flush with the frame or post. They are ideal for heavy weight, high use doors, gates, garages and stables in domestic and agricultural applications. Depending on the weight distribution of the gate, the top or bottom pin can be mounted upside down to prevent unwanted removal of the gate. NOTE: Doors/gates over 2130mm / 7ft height, should be fitted with a third hinge to pre
Cranked Band Hook Plate Black

Cranked Band Hook Plate Black - 350mm (Plain Bag 2)

SKU: HBC350B
£12.61 inc. VAT
£15.34 Sale £12.61 inc. VAT
Description

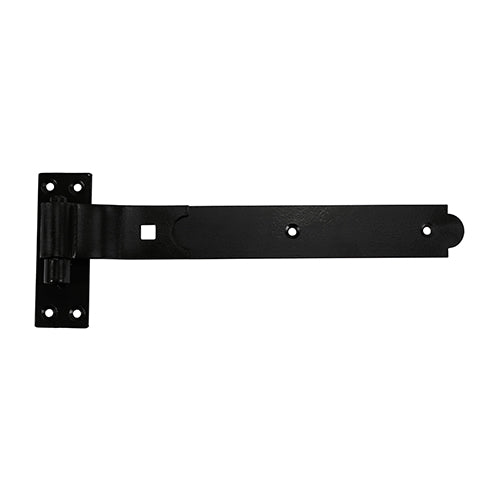

TIMCO Cranked Band & Hook On Plates Hinges Black - 350mm

The cranked pattern hook and band hinges are for hanging the door or gate flush with the frame or post. They are ideal for heavy weight, high use doors, gates, garages and stables in domestic and agricultural applications. Depending on the weight distribution of the gate, the top or bottom pin can be mounted upside down to prevent unwanted removal of the gate. NOTE: Doors/gates over 2130mm / 7ft height, should be fitted with a third hinge to pre

Pack Quantity 2
Description The cranked pattern hook and band hinges are for hanging the door or gate flush with the frame or post. They are ideal for heavy weight, high use doors, gates, garages and stables in domestic and agricultural applications. Depending on the weight distribution of the gate, the top or bottom pin can be mounted upside down to prevent unwanted removal of the gate. NOTE: Doors/gates over 2130mm / 7ft height, should be fitted with a third hinge to pre
Product Code HBC350B
Pack Type Plain Bag
SKU Barcode 5055893360385
Pack Quantity Unit Pieces
Finish Epoxy Black
Band Width mm 40
Corrosion Rating 2 - Occasionally damp/wet, rural and sheltered areas
Carriage Bolt Size mm M10 x 100
Material Carbon Steel
To Suit Gate Width mm 700 - 1050
No. of Screw Holes 12
Band Thickness mm 4.8
Hook Plate Size L x W mm 115 x 40
Band Length mm 350
Band Length inch 14
No. of Bolt Holes 2
Pin Dia. inch
Pin Dia. mm 12
Type Cranked
No. of Carriage Bolts 2
No. of CSK Screws 12
CSK Screw Size mm 6.0 x 40
To Fit Carriage Bolt Dia. mm M10
Carton Qty Packs 5 Pairs
Carton Qty pcs 10
Rec Screw Dia. mm 6
Rec Screw Gauge imp. 12
Washer Type Form A
Nut Type Hex Full
Washer Size mm M10
No. of Nuts 2
Nut Size mm M10
No. of Washers 2
Included Items M10 x 100mm Carriage Bolts (Qty 2) ?M10 Hex Full Nuts (Qty 2) ?M10 Form A Washers (Qty 2) ?6.0 x 40mm Countersunk Screws (Qty 12)
Pack Weight kg 1.8
Pack Dimensions L x W x H mm 152 x 30 x 457
