The straight pattern hook and band hinges are for hanging the door or gate in front of the frame or post. They are ideal for heavy weight, high use doors, gates, garages and stables in domestic and agricultural applications. Depending on the weight distribution of the gate, the top or bottom pin can be mounted upside down to prevent unwanted removal of the gate. NOTE: Doors/gates over 2130mm / 7ft height, should be fitted with a third hinge to p
Straight Band Hook Plate HDG

Straight Band Hook Plate HDG - 400mm (Plain Bag 2)

SKU: HBS400G
£13.69 inc. VAT
£16.46 Sale £13.69 inc. VAT
Description

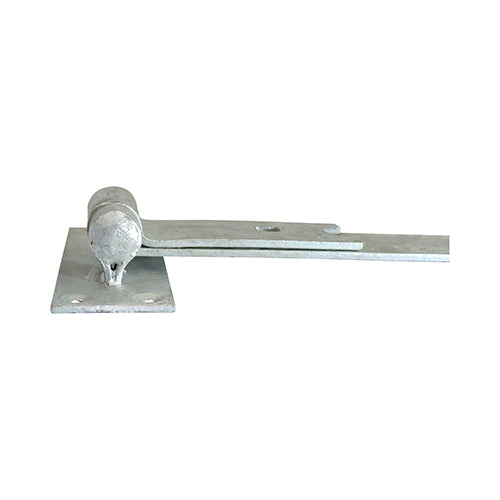

TIMCO Straight Band & Hook On Plates Hinges Hot Dipped Galvanised - 400mm

The straight pattern hook and band hinges are for hanging the door or gate in front of the frame or post. They are ideal for heavy weight, high use doors, gates, garages and stables in domestic and agricultural applications. Depending on the weight distribution of the gate, the top or bottom pin can be mounted upside down to prevent unwanted removal of the gate. NOTE: Doors/gates over 2130mm / 7ft height, should be fitted with a third hinge to p

Pack Type Plain Bag
Description The straight pattern hook and band hinges are for hanging the door or gate in front of the frame or post. They are ideal for heavy weight, high use doors, gates, garages and stables in domestic and agricultural applications. Depending on the weight distribution of the gate, the top or bottom pin can be mounted upside down to prevent unwanted removal of the gate. NOTE: Doors/gates over 2130mm / 7ft height, should be fitted with a third hinge to p
Pack Quantity 2
Product Code HBS400G
SKU Barcode 5055893360125
Pack Quantity Unit Pieces
Hook Plate Size L x W mm 115 x 40
No. of Bolt Holes 2
Band Length mm 400
Corrosion Rating 4 - Urban & industrial areas with a moderate salt atmosphere
Band Thickness mm 4.8
Band Length inch 16
Band Width mm 40
Material Carbon Steel
Carriage Bolt Size mm M10 x 100
To Suit Gate Width mm 800 - 1200
No. of Screw Holes 14
Finish Hot Dipped Galvanised
Pin Dia. inch
Pin Dia. mm 12
No. of Carriage Bolts 2
No. of CSK Screws 14
Type Straight
Carton Qty pcs 10
CSK Screw Size mm 6.0 x 40
To Fit Carriage Bolt Dia. mm M10
Carton Qty Packs 5 Pairs
Rec Screw Gauge imp. 12
Rec Screw Dia. mm 6
Washer Size mm M10
Nut Size mm M10
Washer Type Form A
No. of Washers 2
Nut Type Hex Full
No. of Nuts 2
Included Items M10 x 100mm Carriage Bolts (Qty 2) ?M10 Hex Full Nuts (Qty 2) ?M10 Form A Washers (Qty 2) ?6.0 x 40mm Countersunk Screws (Qty 14)
Pack Dimensions L x W x H mm 152 x 30 x 457
Pack Weight kg 1.94
