Heavy reversible hinges are ideal for flush mounted heavy gates, garage and stable doors in domestic, commercial and agricultural applications. The pins of the hinges mount into the hinge cups and prevent gates or doors from being lifted off. NOTE: Doors/gates over 2130mm / 7ft height, should be fitted with a third hinge to prevent warping. Fixings included.
Heavy ReversibleHinge Pair BLK

Heavy ReversibleHinge Pair BLK - 1200mm (Plain Bag 1)

SKU: HRH1200B
£77.34 inc. VAT
£93.05 Sale £77.34 inc. VAT
Description

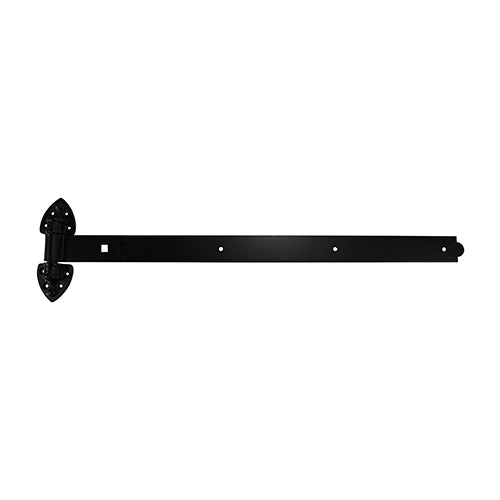

TIMCO Heavy Duty Reversible Hinges Black - 1200mm

Heavy reversible hinges are ideal for flush mounted heavy gates, garage and stable doors in domestic, commercial and agricultural applications. The pins of the hinges mount into the hinge cups and prevent gates or doors from being lifted off. NOTE: Doors/gates over 2130mm / 7ft height, should be fitted with a third hinge to prevent warping. Fixings included.

Pack Type Plain Bag
Product Code HRH1200B
Pack Quantity 1
Description Heavy reversible hinges are ideal for flush mounted heavy gates, garage and stable doors in domestic, commercial and agricultural applications. The pins of the hinges mount into the hinge cups and prevent gates or doors from being lifted off. NOTE: Doors/gates over 2130mm / 7ft height, should be fitted with a third hinge to prevent warping. Fixings included.
SKU Barcode 5055893360699
Pack Quantity Unit Each
Finish Epoxy Black
Band Width mm 50
Carriage Bolt Size mm M12 x 100
Material Carbon Steel
To Suit Gate Width mm 2400 - 3600
No. of Screw Holes 30
Band Length inch 48
Band Length mm 1200
Corrosion Rating 2 - Occasionally damp/wet, rural and sheltered areas
Band Thickness mm 5.6
No. of Bolt Holes 2
Pin Dia. inch
Type Reversible
Pin Dia. mm 19
No. of Carriage Bolts 2
No. of CSK Screws 26
CSK Screw Size mm 6.0 x 40
To Fit Carriage Bolt Dia. mm M12
Carton Qty pcs 4
Carton Qty Packs 2 Pairs
Rec Screw Gauge imp. 12
Rec Screw Dia. mm 6
Nut Size mm M12
No. of Washers 2
Washer Size mm M12
No. of Nuts 2
Washer Type Form A
Nut Type Hex Full
Included Items M12 x 100mm Carriage Bolts (Qty 2) ?M12 Hex Full Nuts (Qty 2) ?M12 Form A Washers (Qty 2) ?6.0 x 40mm Countersunk Screws (Qty 26)
Pack Dimensions L x W x H mm 152 x 30 x 1371
Pack Weight kg 7.18
