Heavy reversible hinges are ideal for flush mounted heavy gates, garage and stable doors in domestic, commercial and agricultural applications. The pins of the hinges mount into the hinge cups and prevent gates or doors from being lifted off. NOTE: Doors/gates over 2130mm / 7ft height, should be fitted with a third hinge to prevent warping. Fixings included.
Heavy ReversibleHinge Pair HDG

Heavy ReversibleHinge Pair HDG - 250mm (Plain Bag 1)

SKU: HRH250G
£16.70 inc. VAT
£20.16 Sale £16.70 inc. VAT
Description

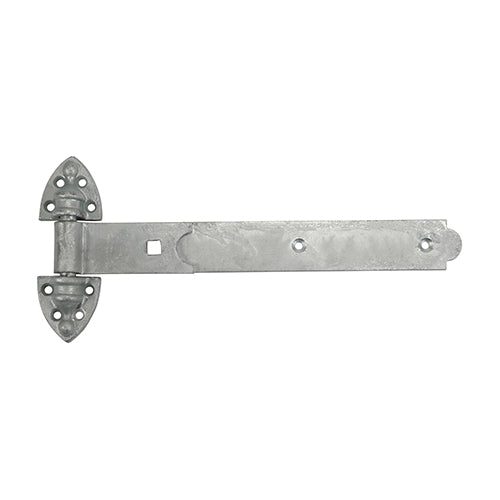

TIMCO Heavy Duty Reversible Hinges Hot Dipped Galvanised - 250mm

Heavy reversible hinges are ideal for flush mounted heavy gates, garage and stable doors in domestic, commercial and agricultural applications. The pins of the hinges mount into the hinge cups and prevent gates or doors from being lifted off. NOTE: Doors/gates over 2130mm / 7ft height, should be fitted with a third hinge to prevent warping. Fixings included.

Pack Quantity 1
Description Heavy reversible hinges are ideal for flush mounted heavy gates, garage and stable doors in domestic, commercial and agricultural applications. The pins of the hinges mount into the hinge cups and prevent gates or doors from being lifted off. NOTE: Doors/gates over 2130mm / 7ft height, should be fitted with a third hinge to prevent warping. Fixings included.
Product Code HRH250G
Pack Type Plain Bag
SKU Barcode 5055893360705
Pack Quantity Unit Each
Material Carbon Steel
Finish Hot Dipped Galvanised
Band Width mm 40
To Suit Gate Width mm 500 - 750
No. of Screw Holes 22
No. of Bolt Holes 2
Band Thickness mm 4.8
Carriage Bolt Size mm M10 x 100
Band Length inch 10
Band Length mm 250
Corrosion Rating 4 - Urban & industrial areas with a moderate salt atmosphere
Pin Dia. inch
Pin Dia. mm 12
Type Reversible
No. of Carriage Bolts 2
No. of CSK Screws 20
CSK Screw Size mm 6.0 x 40
To Fit Carriage Bolt Dia. mm M10
Carton Qty pcs 10
Carton Qty Packs 5 Pairs
Rec Screw Gauge imp. 12
Rec Screw Dia. mm 6
Nut Type Hex Full
Washer Size mm M10
No. of Nuts 2
Nut Size mm M10
Washer Type Form A
No. of Washers 2
Included Items M10 x 100mm Carriage Bolts (Qty 2) ?M10 Hex Full Nuts (Qty 2) ?M10 Form A Washers (Qty 2) ?6.0 x 40mm Countersunk Screws (Qty 20)
Pack Weight kg 1.72
Pack Dimensions L x W x H mm 160 x 30 x 395
