Heavy reversible hinges are ideal for flush mounted heavy gates, garage and stable doors in domestic, commercial and agricultural applications. The pins of the hinges mount into the hinge cups and prevent gates or doors from being lifted off. NOTE: Doors/gates over 2130mm / 7ft height, should be fitted with a third hinge to prevent warping. Fixings included.
Heavy ReversibleHinge Pair BLK

Heavy ReversibleHinge Pair BLK - 300mm (Plain Bag 1)

SKU: HRH300B
£14.93 inc. VAT
£18.14 Sale £14.93 inc. VAT
Description

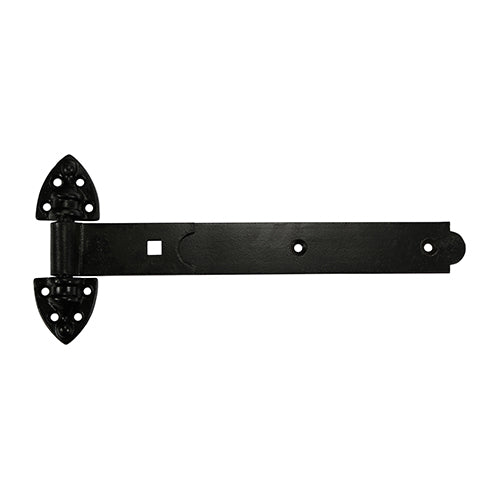

TIMCO Heavy Duty Reversible Hinges Black - 300mm

Heavy reversible hinges are ideal for flush mounted heavy gates, garage and stable doors in domestic, commercial and agricultural applications. The pins of the hinges mount into the hinge cups and prevent gates or doors from being lifted off. NOTE: Doors/gates over 2130mm / 7ft height, should be fitted with a third hinge to prevent warping. Fixings included.

Pack Type Plain Bag
Product Code HRH300B
Pack Quantity 1
Description Heavy reversible hinges are ideal for flush mounted heavy gates, garage and stable doors in domestic, commercial and agricultural applications. The pins of the hinges mount into the hinge cups and prevent gates or doors from being lifted off. NOTE: Doors/gates over 2130mm / 7ft height, should be fitted with a third hinge to prevent warping. Fixings included.
SKU Barcode 5055893360606
Pack Quantity Unit Each
Finish Epoxy Black
Band Width mm 40
Band Thickness mm 4.8
Band Length inch 12
No. of Screw Holes 22
No. of Bolt Holes 2
Band Length mm 300
Material Carbon Steel
Carriage Bolt Size mm M10 x 100
To Suit Gate Width mm 600 - 900
Corrosion Rating 2 - Occasionally damp/wet, rural and sheltered areas
Pin Dia. inch
Pin Dia. mm 12
Type Reversible
No. of Carriage Bolts 2
No. of CSK Screws 20
CSK Screw Size mm 6.0 x 40
To Fit Carriage Bolt Dia. mm M10
Carton Qty pcs 10
Carton Qty Packs 5 Pairs
Rec Screw Dia. mm 6
Rec Screw Gauge imp. 12
Washer Size mm M10
Nut Type Hex Full
No. of Nuts 2
Nut Size mm M10
Washer Type Form A
No. of Washers 2
Included Items M10 x 100mm Carriage Bolts (Qty 2) ?M10 Hex Full Nuts (Qty 2) ?M10 Form A Washers (Qty 2) ?6.0 x 40mm Countersunk Screws (Qty 20)
Pack Dimensions L x W x H mm 130 x 30 x 395
Pack Weight kg 1.94
