Heavy reversible hinges are ideal for flush mounted heavy gates, garage and stable doors in domestic, commercial and agricultural applications. The pins of the hinges mount into the hinge cups and prevent gates or doors from being lifted off. NOTE: Doors/gates over 2130mm / 7ft height, should be fitted with a third hinge to prevent warping. Fixings included.
Heavy ReversibleHinge Pair HDG

Heavy ReversibleHinge Pair HDG - 500mm (Plain Bag 1)

SKU: HRH500G
£24.32 inc. VAT
£29.38 Sale £24.32 inc. VAT
Description

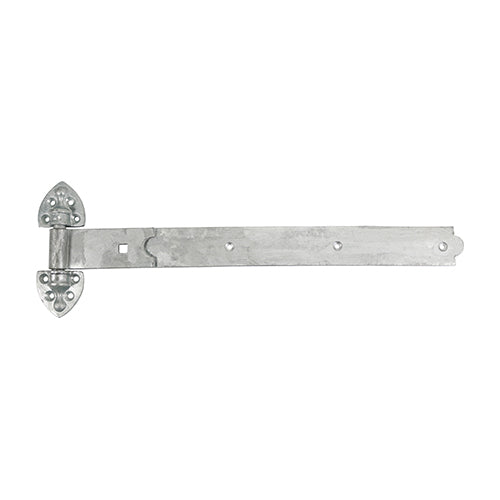

TIMCO Heavy Duty Reversible Hinges Hot Dipped Galvanised - 500mm

Heavy reversible hinges are ideal for flush mounted heavy gates, garage and stable doors in domestic, commercial and agricultural applications. The pins of the hinges mount into the hinge cups and prevent gates or doors from being lifted off. NOTE: Doors/gates over 2130mm / 7ft height, should be fitted with a third hinge to prevent warping. Fixings included.

Product Code HRH500G
Pack Quantity 1
Pack Type Plain Bag
Description Heavy reversible hinges are ideal for flush mounted heavy gates, garage and stable doors in domestic, commercial and agricultural applications. The pins of the hinges mount into the hinge cups and prevent gates or doors from being lifted off. NOTE: Doors/gates over 2130mm / 7ft height, should be fitted with a third hinge to prevent warping. Fixings included.
SKU Barcode 5055893360750
Pack Quantity Unit Each
Finish Hot Dipped Galvanised
Material Carbon Steel
To Suit Gate Width mm 1000 - 1500
No. of Screw Holes 26
No. of Bolt Holes 2
Band Width mm 50
Band Thickness mm 4.8
Carriage Bolt Size mm M10 x 100
Band Length inch 20
Band Length mm 500
Corrosion Rating 4 - Urban & industrial areas with a moderate salt atmosphere
Pin Dia. inch
Pin Dia. mm 16
Type Reversible
No. of Carriage Bolts 2
No. of CSK Screws 22
Carton Qty pcs 10
CSK Screw Size mm 6.0 x 40
To Fit Carriage Bolt Dia. mm M10
Carton Qty Packs 5 Pairs
Rec Screw Dia. mm 6
Rec Screw Gauge imp. 12
Washer Size mm M10
Nut Size mm M10
No. of Washers 2
Nut Type Hex Full
No. of Nuts 2
Washer Type Form A
Included Items M10 x 100mm Carriage Bolts (Qty 2) ?M10 Hex Full Nuts (Qty 2) ?M10 Form A Washers (Qty 2) ?6.0 x 40mm Countersunk Screws (Qty 22)
Pack Dimensions L x W x H mm 152 x 30 x 609
Pack Weight kg 3.32
