Heavy reversible hinges are ideal for flush mounted heavy gates, garage and stable doors in domestic, commercial and agricultural applications. The pins of the hinges mount into the hinge cups and prevent gates or doors from being lifted off. NOTE: Doors/gates over 2130mm / 7ft height, should be fitted with a third hinge to prevent warping. Fixings included.
Heavy ReversibleHinge Pair HDG

Heavy ReversibleHinge Pair HDG - 600mm (Plain Bag 1)

SKU: HRH600G
£36.38 inc. VAT
£43.66 Sale £36.38 inc. VAT
Description

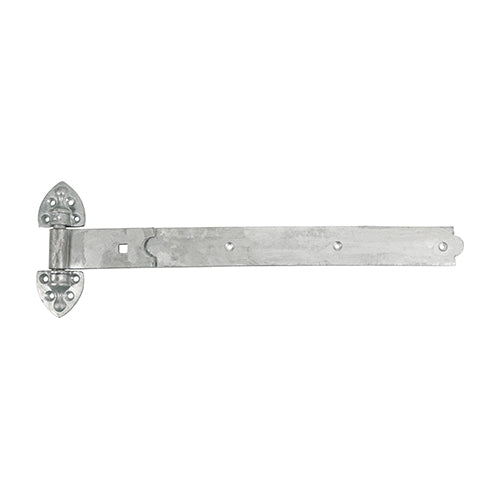

TIMCO Heavy Duty Reversible Hinges Hot Dipped Galvanised - 600mm

Heavy reversible hinges are ideal for flush mounted heavy gates, garage and stable doors in domestic, commercial and agricultural applications. The pins of the hinges mount into the hinge cups and prevent gates or doors from being lifted off. NOTE: Doors/gates over 2130mm / 7ft height, should be fitted with a third hinge to prevent warping. Fixings included.

Product Code HRH600G
Pack Type Plain Bag
Description Heavy reversible hinges are ideal for flush mounted heavy gates, garage and stable doors in domestic, commercial and agricultural applications. The pins of the hinges mount into the hinge cups and prevent gates or doors from being lifted off. NOTE: Doors/gates over 2130mm / 7ft height, should be fitted with a third hinge to prevent warping. Fixings included.
Pack Quantity 1
SKU Barcode 5055893360767
Pack Quantity Unit Each
Material Carbon Steel
Finish Hot Dipped Galvanised
No. of Screw Holes 26
No. of Bolt Holes 2
Band Length mm 600
Band Width mm 50
Band Thickness mm 5.6
Band Length inch 24
Corrosion Rating 4 - Urban & industrial areas with a moderate salt atmosphere
To Suit Gate Width mm 1200 - 1800
Carriage Bolt Size mm M12 x 100
Pin Dia. inch
Pin Dia. mm 16
Type Reversible
No. of Carriage Bolts 2
No. of CSK Screws 22
CSK Screw Size mm 6.0 x 40
To Fit Carriage Bolt Dia. mm M12
Carton Qty pcs 10
Carton Qty Packs 5 Pairs
Rec Screw Dia. mm 6
Rec Screw Gauge imp. 12
Washer Type Form A
Nut Type Hex Full
Washer Size mm M12
No. of Nuts 2
Nut Size mm M12
No. of Washers 2
Included Items M12 x 100mm Carriage Bolts (Qty 2) ?M12 Hex Full Nuts (Qty 2) ?M12 Form A Washers (Qty 2) ?6.0 x 40mm Countersunk Screws (Qty 22)
Pack Dimensions L x W x H mm 150 x 30 x 765
Pack Weight kg 4.14
