Heavy reversible hinges are ideal for flush mounted heavy gates, garage and stable doors in domestic, commercial and agricultural applications. The pins of the hinges mount into the hinge cups and prevent gates or doors from being lifted off. NOTE: Doors/gates over 2130mm / 7ft height, should be fitted with a third hinge to prevent warping. Fixings included.
Heavy ReversibleHinge Pair HDG

Heavy ReversibleHinge Pair HDG - 900mm (Plain Bag 1)

SKU: HRH900G
£54.76 inc. VAT
£65.83 Sale £54.76 inc. VAT
Description

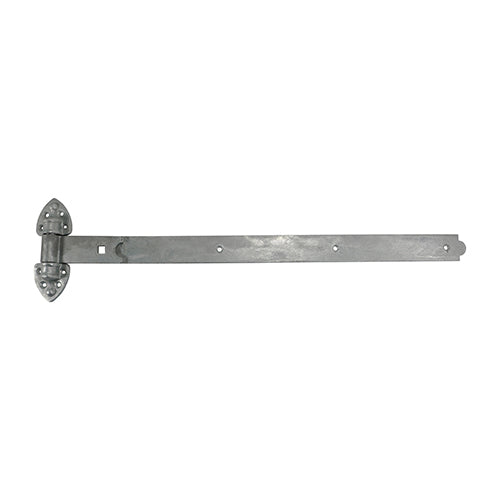

TIMCO Heavy Duty Reversible Hinges Hot Dipped Galvanised - 900mm

Heavy reversible hinges are ideal for flush mounted heavy gates, garage and stable doors in domestic, commercial and agricultural applications. The pins of the hinges mount into the hinge cups and prevent gates or doors from being lifted off. NOTE: Doors/gates over 2130mm / 7ft height, should be fitted with a third hinge to prevent warping. Fixings included.

Pack Type Plain Bag
Product Code HRH900G
Description Heavy reversible hinges are ideal for flush mounted heavy gates, garage and stable doors in domestic, commercial and agricultural applications. The pins of the hinges mount into the hinge cups and prevent gates or doors from being lifted off. NOTE: Doors/gates over 2130mm / 7ft height, should be fitted with a third hinge to prevent warping. Fixings included.
Pack Quantity 1
SKU Barcode 5055893360781
Pack Quantity Unit Each
Material Carbon Steel
Finish Hot Dipped Galvanised
Corrosion Rating 4 - Urban & industrial areas with a moderate salt atmosphere
Carriage Bolt Size mm M12 x 100
Band Length inch 36
To Suit Gate Width mm 1800 - 2700
Band Thickness mm 5.6
No. of Bolt Holes 2
Band Width mm 50
No. of Screw Holes 30
Band Length mm 900
Pin Dia. inch
Type Reversible
Pin Dia. mm 19
CSK Screw Size mm 6.0 x 40
To Fit Carriage Bolt Dia. mm M12
No. of Carriage Bolts 2
No. of CSK Screws 24
Carton Qty pcs 10
Carton Qty Packs 5 Pairs
Rec Screw Gauge imp. 12
Rec Screw Dia. mm 6
Washer Size mm M12
Nut Size mm M12
Washer Type Form A
No. of Washers 2
Nut Type Hex Full
No. of Nuts 2
Included Items M12 x 100mm Carriage Bolts (Qty 2) ?M12 Hex Full Nuts (Qty 2) ?M12 Form A Washers (Qty 2) ?6.0 x 40mm Countersunk Screws (Qty 24)
Pack Dimensions L x W x H mm 152 x 30 x 1066
Pack Weight kg 5.92
