Ideal for use on fieldgates and driveway gates that are to be hung on timber posts. The hinge set provides exceptional support to the gate as the top band and bottom strap wrap around the gate and are fixed with cup square bolts to firmly secure in place. ?Depending on the weight distribution of the gate, the top or bottom pin can be mounted upside down to prevent unwanted removal of the gate. Fixings included.
Standard Double Strap Set HDG

Standard Double Strap Set HDG - 450mm (Plain Bag 1)

SKU: SFH450G
£23.85 inc. VAT
£28.86 Sale £23.85 inc. VAT
Description

TIMCO Standard Double Strap Gate Hinge Set Hot Dipped Galvanised - 450mm

Ideal for use on fieldgates and driveway gates that are to be hung on timber posts. The hinge set provides exceptional support to the gate as the top band and bottom strap wrap around the gate and are fixed with cup square bolts to firmly secure in place. ?Depending on the weight distribution of the gate, the top or bottom pin can be mounted upside down to prevent unwanted removal of the gate. Fixings included.

Hook to bolt features a 9mm drilled hole for R clips or linch pins (not included) to be fitted to prevent the gate being lifted off

Hooks to drive are barbed, preventing the gate from working loose

Pack Quantity 1
Pack Type Plain Bag
Description Ideal for use on fieldgates and driveway gates that are to be hung on timber posts. The hinge set provides exceptional support to the gate as the top band and bottom strap wrap around the gate and are fixed with cup square bolts to firmly secure in place. ?Depending on the weight distribution of the gate, the top or bottom pin can be mounted upside down to prevent unwanted removal of the gate. Fixings included.
Product Code SFH450G
SKU Barcode 5055893361207
Pack Quantity Unit Each
Material Carbon Steel
Finish Hot Dipped Galvanised
To Suit Gate Thickness mm 75
Corrosion Rating 4 - Urban & industrial areas with a moderate salt atmosphere
Carriage Bolt Size mm M10 x 95
Hook to Drive Size mm 215 x 22
Bottom Strap L inch 6
Top Strap L inch 18
Hook to Bolt Dia. x L mm M20 x 350
To Suit Gate Width ft 45173
Top Strap L mm 450
Bottom Strap L mm 150
Pin Dia. inch
To Suit Gate Width mm 1200 - 2700
To Suit Gate Thickness inch 3
Strap Thickness mm 6
Pin Dia. mm 19
Type Standard
No. of Carriage Bolts 4
No. of Screw Holes 2
No. of CSK Screws 2
To Fit Carriage Bolt Dia. mm M10
CSK Screw Size mm 6.0 x 40

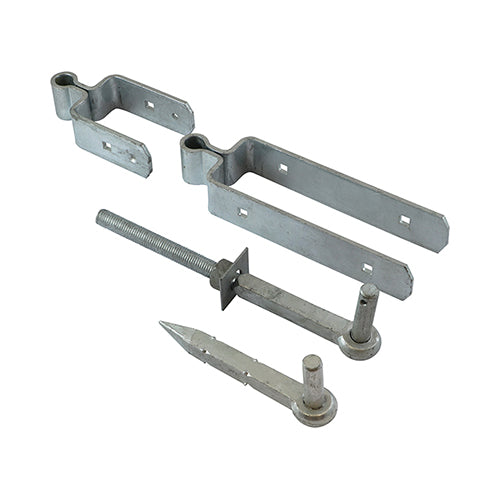

Contents 450mm Top Strap (Qty 1) ?150mm Bottom Strap (Qty 1) ?215mm Hook to Drive (Qty 1) ?M20 x 350mm Hook to Bolt (Qty 1) ?M10 x 95mm Carriage Bolts (Qty 4) ?M10 Full Hex Nuts (Qty 4) ?M10 Washers (Qty 4) ?6.0 x 40mm TIMco Exterior Woodscrews (Qty 2)
Carton Qty pcs 4
Carton Qty Packs 4
No. of Washers 4
Washer Size mm M10
No. of Nuts 4
Nut Size mm M10
Washer Type Form A
Nut Type Hex Full
Pack Dimensions L x W x H mm 152 x 30 x 610
Pack Weight kg 5.28
