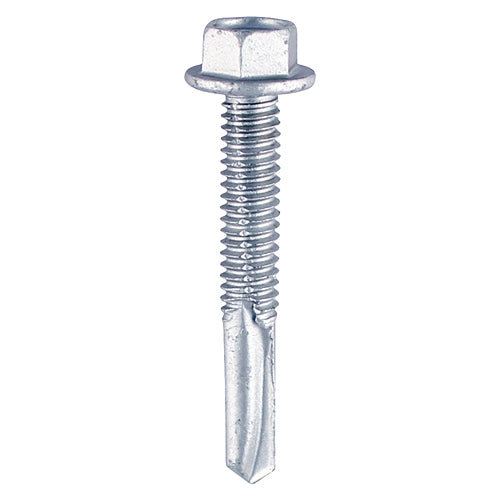

Hex Screw S/DRILL No5 Zinc - 5.5 x 38 (Box 100)
Regular price
£7.67
inc. VAT
Regular price
£9.23
Sale
Sale price
£7.67
inc. VAT
TIMCO Self-Drilling Heavy Section Silver Screws - 5.5 x 38
Used for attaching metal to heavy section steel (Max. 12mm) without the need to pre-drill a hole.
| Rec RPM | 1,000 - 1,800 |
| Thread Type | Metric with V Flutes & Torque Relieving Slash |
| Substrates | Steel |
| Pack Quantity | 100 |
| Head Type | Hex |
| Finish | Zinc |
| Material | Case & Core Hardened Carbon Steel |
| Product Code | ZH38B |
| Socket Size mm | 8 |
| Thread Dia. mm | 5.5 |
| Fixed Washer Dia. mm | 12 |
| Length mm | 38 |
| Head Height mm | 5.6 |
| Description | Used for attaching metal to heavy section steel (Max. 12mm) without the need to pre-drill a hole. |
| Point Type | Self-Drilling No.5 |
| Approval | BS EN 10666 (DIN 7504) |
| Pack Type | Box |
| Pack Quantity Unit | Pieces |
| Max Drilling Thickness mm | 12 |
| SKU Barcode | 5056110833712 |
| Type | For Heavy Section Steel |
| Corrosion Rating | 1 - Clean, dry & low humidity environments |
| Effective Thread Length mm | 19 |
| Size mm | 5.5 x 38 |
| Drill Tip Length mm | 15 |
| Carton Qty pcs | 1600 |
| Carton Qty Packs | 16 |
| Pack Dimensions L x W x H mm | 95 x 90 x 60 |
| Pack Weight kg | 0.68 |
| Thread Coverage | Fully Threaded |
