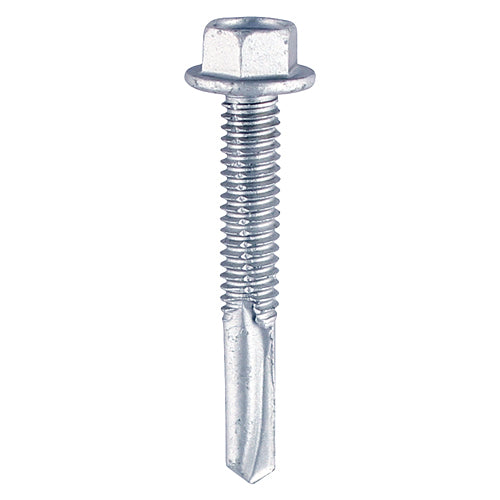

Hex Screw S/DRILL No5 Zinc - 5.5 x 55 (Box 100)
Regular price
£9.83
inc. VAT
Regular price
£12.04
Sale
Sale price
£9.83
inc. VAT
TIMCO Self-Drilling Heavy Section Silver Screws - 5.5 x 55
Used for attaching metal to heavy section steel (Max. 12mm) without the need to pre-drill a hole.
| Description | Used for attaching metal to heavy section steel (Max. 12mm) without the need to pre-drill a hole. |
| Finish | Zinc |
| Pack Type | Box |
| Type | For Heavy Section Steel |
| Max Drilling Thickness mm | 12 |
| Approval | BS EN 10666 (DIN 7504) |
| SKU Barcode | 5056110833736 |
| Substrates | Steel |
| Pack Quantity Unit | Pieces |
| Drill Tip Length mm | 15 |
| Effective Thread Length mm | 36 |
| Length mm | 55 |
| Head Height mm | 5.6 |
| Thread Dia. mm | 5.5 |
| Carton Qty Packs | 15 |
| Point Type | Self-Drilling No.5 |
| Rec RPM | 1,000 - 1,800 |
| Material | Case & Core Hardened Carbon Steel |
| Thread Type | Metric with V Flutes & Torque Relieving Slash |
| Product Code | ZH55B |
| Pack Quantity | 100 |
| Head Type | Hex |
| Corrosion Rating | 1 - Clean, dry & low humidity environments |
| Size mm | 5.5 x 55 |
| Socket Size mm | 8 |
| Fixed Washer Dia. mm | 12 |
| Carton Qty pcs | 1500 |
| Pack Dimensions L x W x H mm | 135 x 90 x 60 |
| Pack Weight kg | 0.92 |
| Thread Coverage | Fully Threaded |
